Description

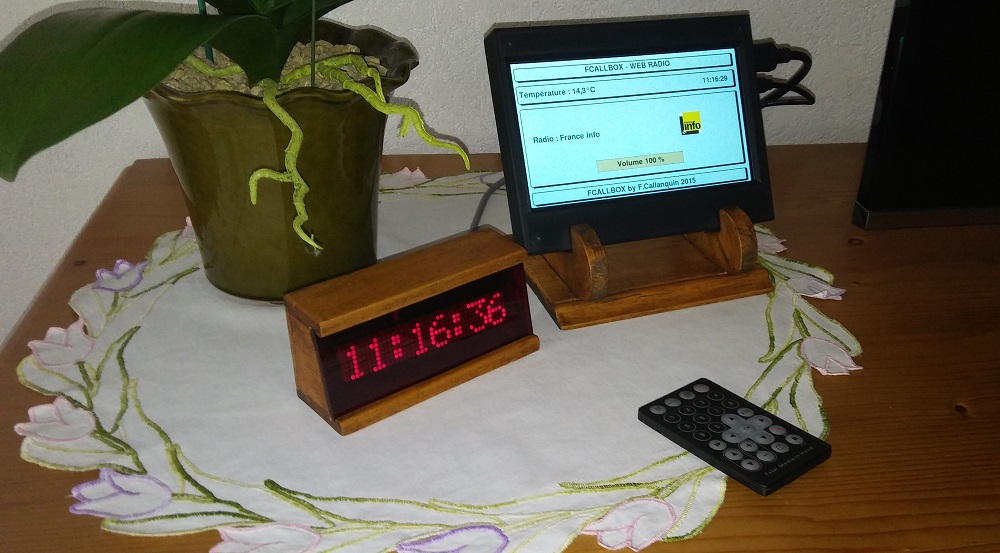

I have bought this HDMI display to replace my old composite LCD display which has failed after several years, I have used this one with my Fcallbox3 Remote Display described
here
This display ref RA215 has the characteristics following :
Download the DS here
.
ENCLOSURE CASE
As I have not found the appropriate enclosure for my application, I have designed the box with Freecad sofware, then I have built it with a 3D printer.
|

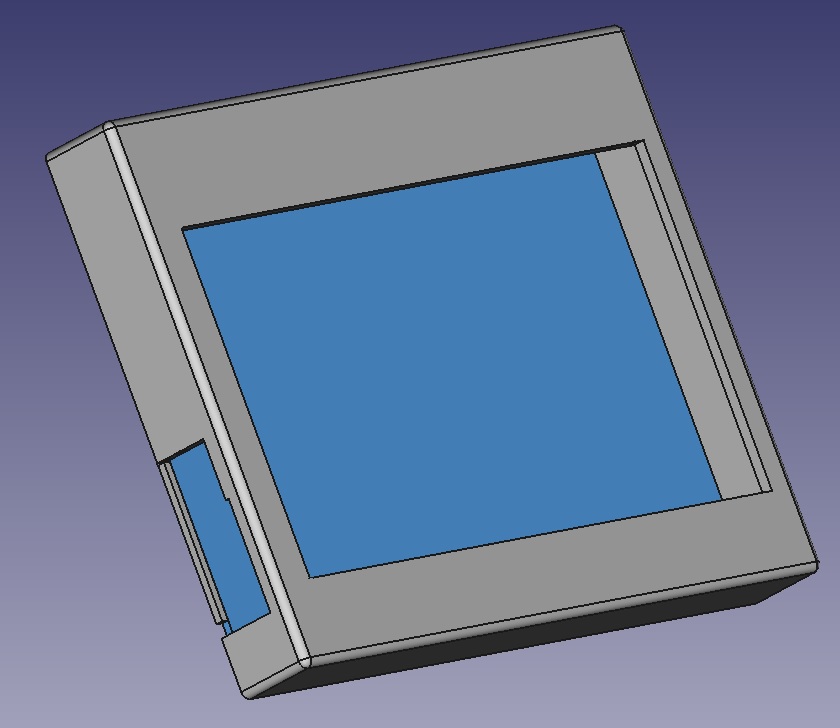

View 3D Freecad
|

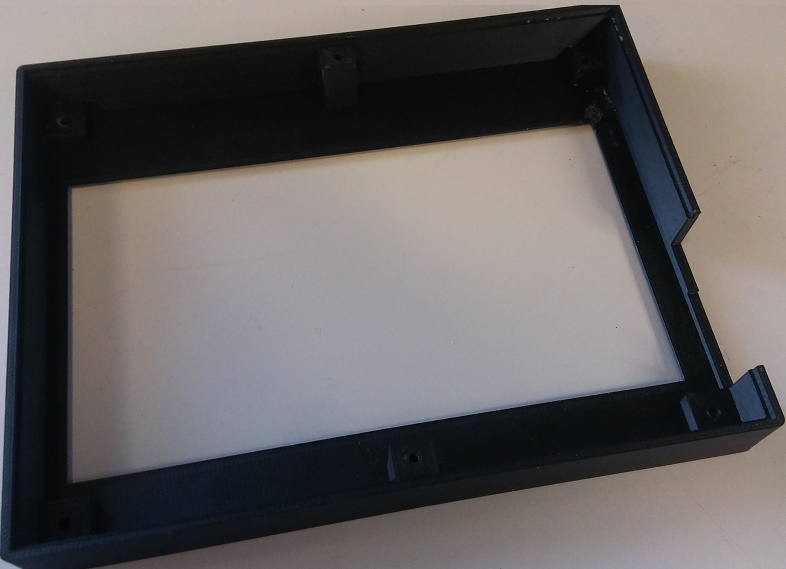

Top case printed
|
|

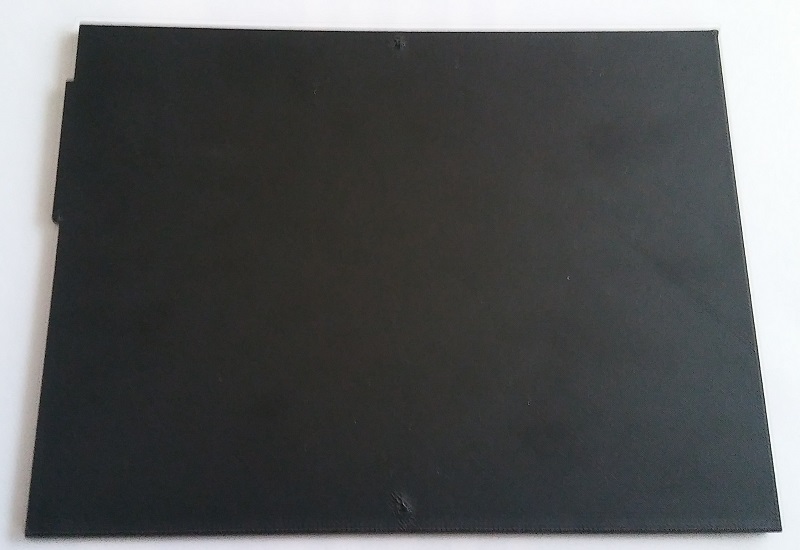

Bottom case printed
|
Assembly details
|
|

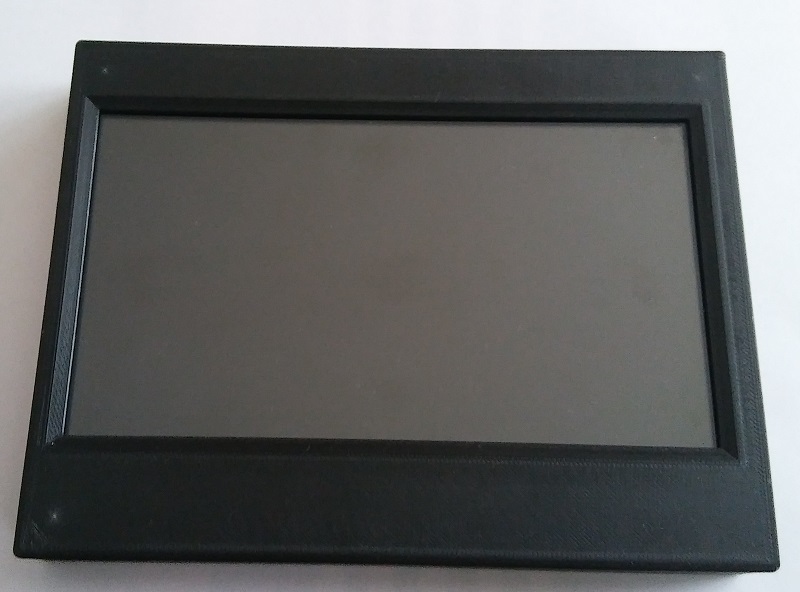

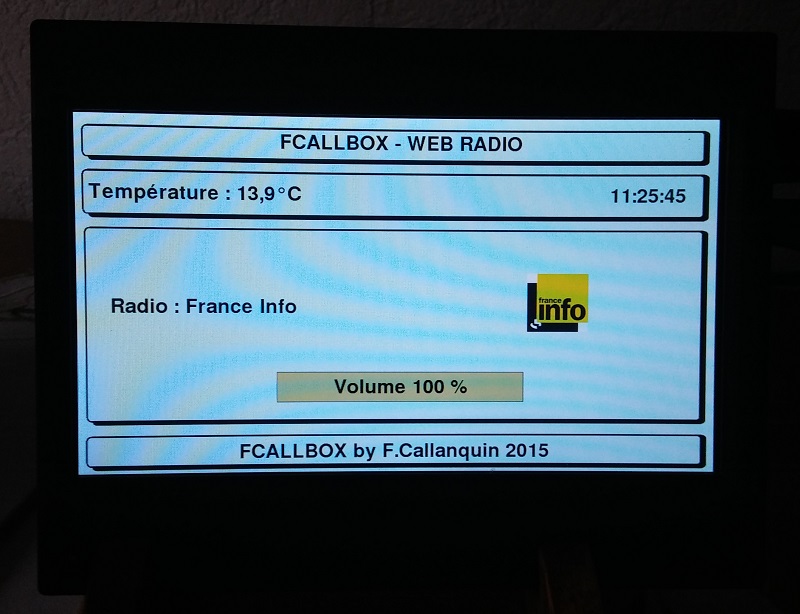

Display finished
|

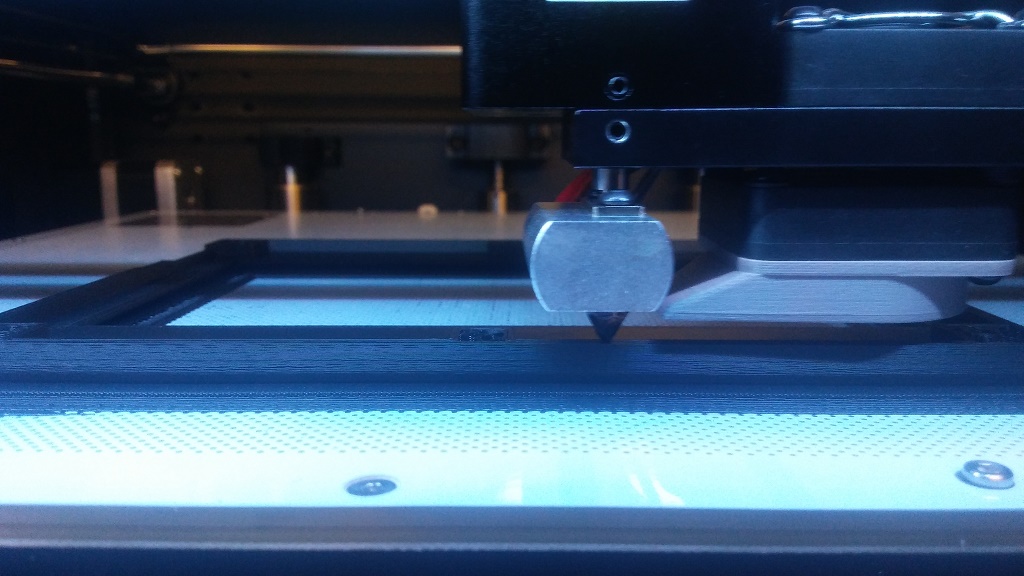

Top case printing
|
Download here the files in step format to print the cases
MODIFICATION
As the display can be switched ON/OFF (5V USB switchable), according to the lenght and the impedance of the power cable (USB), it could occur some voltage overshoots
which can destroy the display board.
I have added a 470uF 25V on the 5V of the board to avoid this.
Below the modification proposal :
|

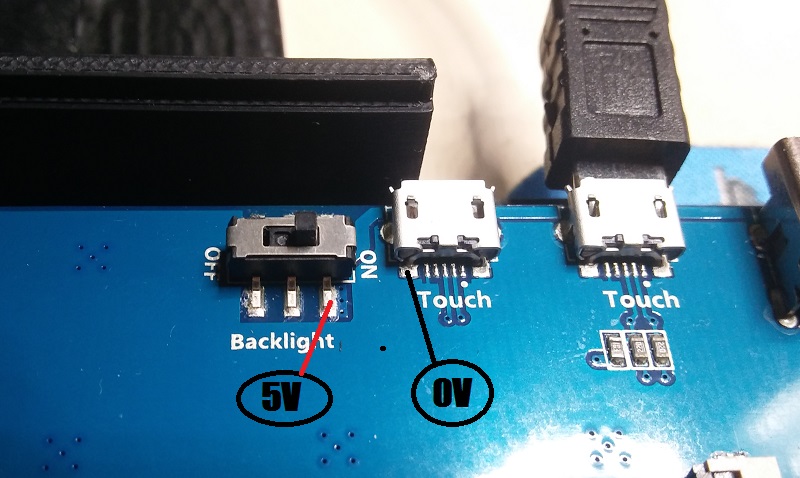

Polarity details
|

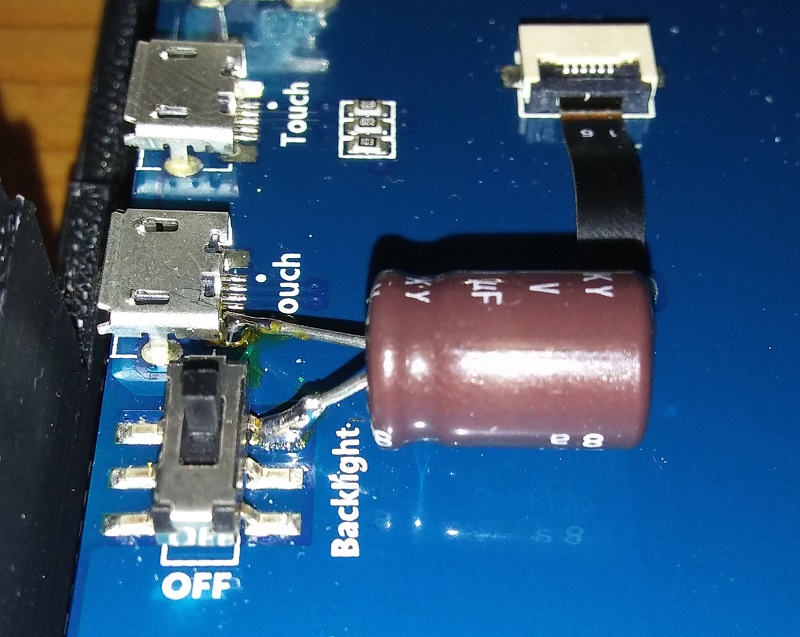

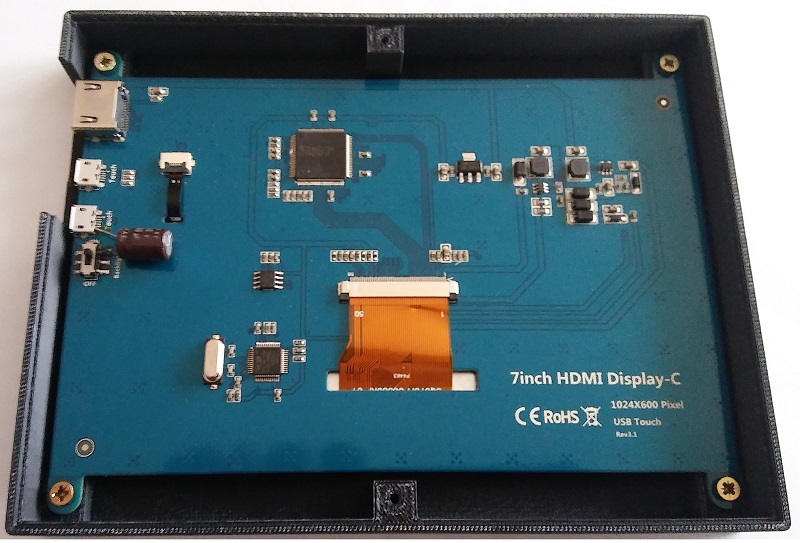

Modification detail
|
