Description
Here is the description of a TFT 2.8" monitor controled by an IR remote control, it should be used as backwardation screen of a system like in this example
Compatible with TFT 2.8" Adafruit Original Pi 1 version (2x13 header) here
320x200 resolution
Connection by cable and DB9 connector
Infrared sensor for use with a remote control
touch possible
ENCLOSURE
I have drawn a box with Freecad and have buit it with 3D printer.
|

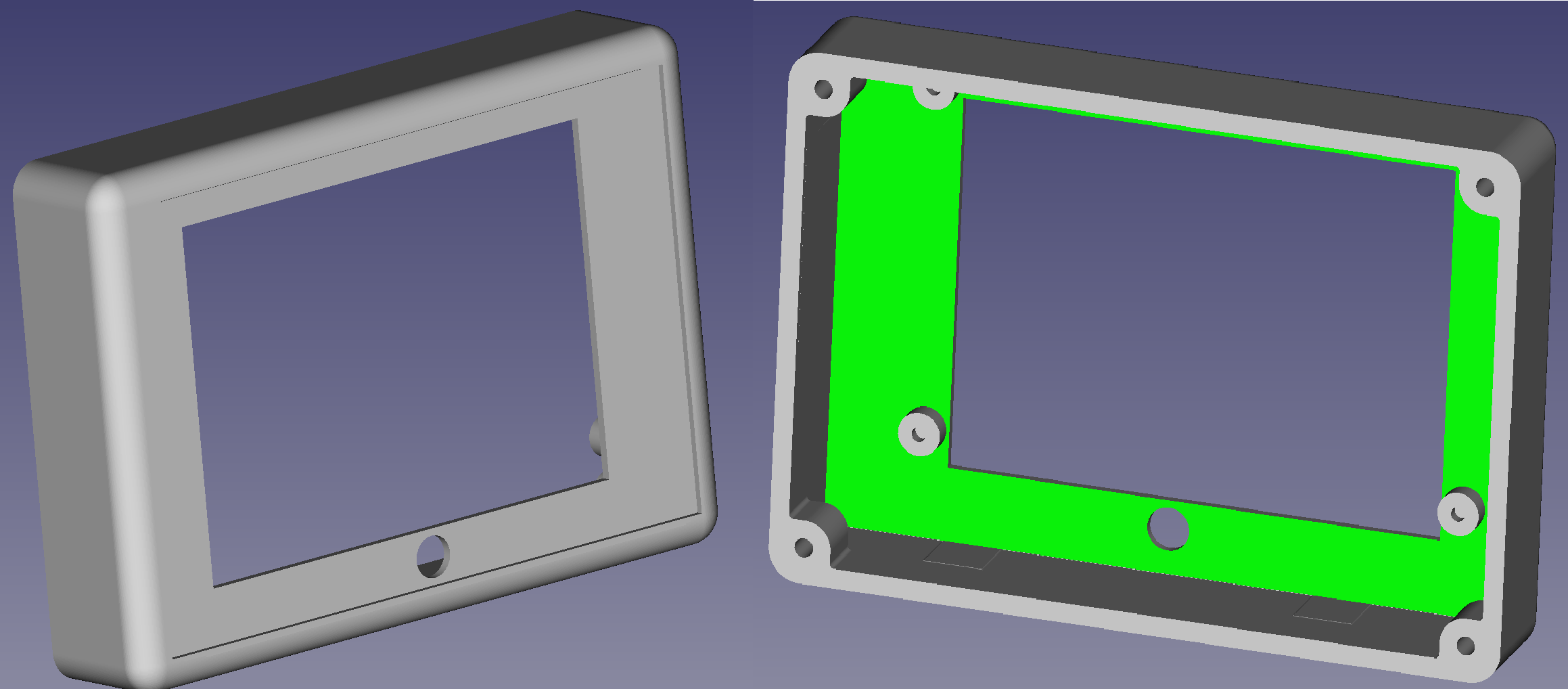

Front view 3D Freecad
|
|

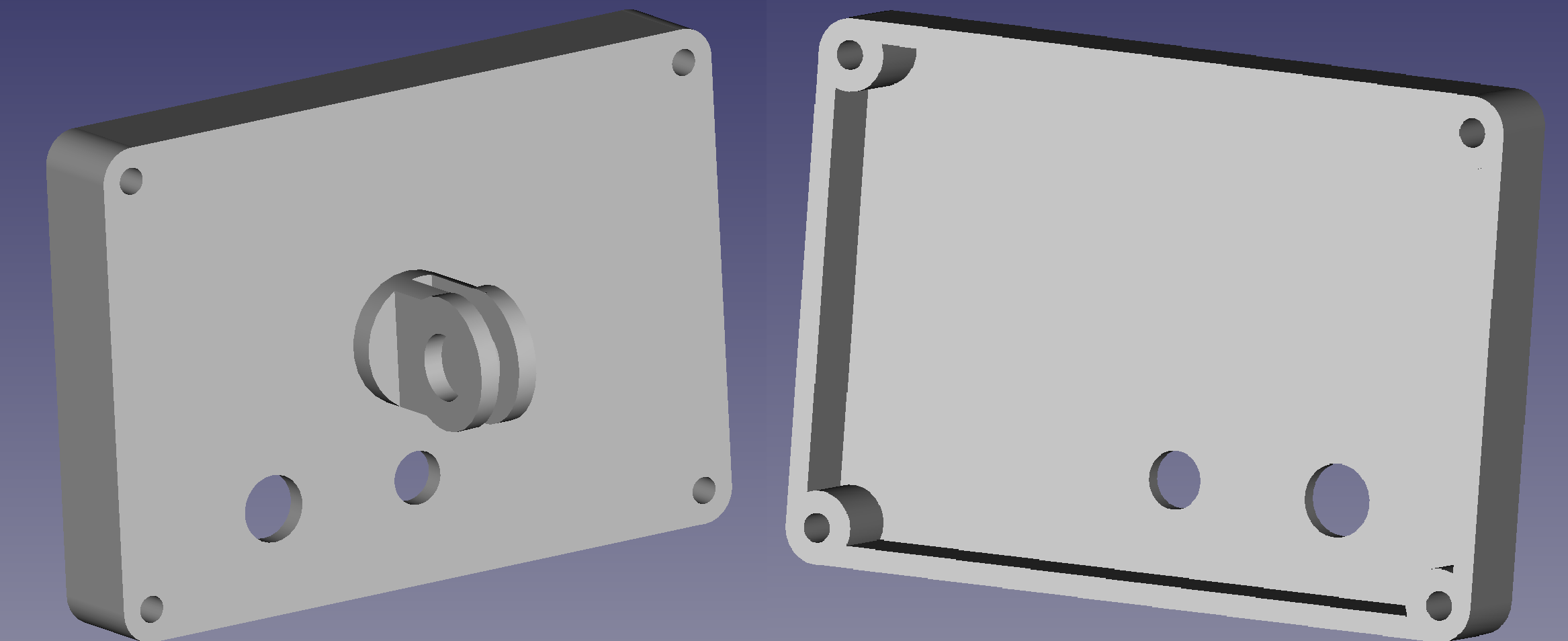

Rear view 3D Freecad
|
|

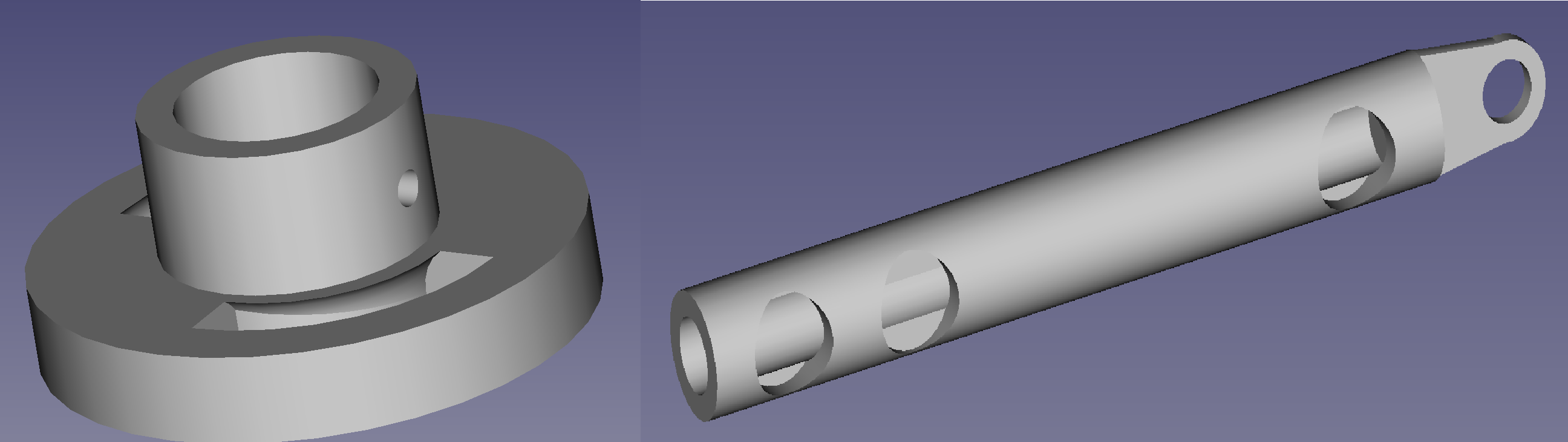

Pedestral feet and stem 3D Freecad
|
|

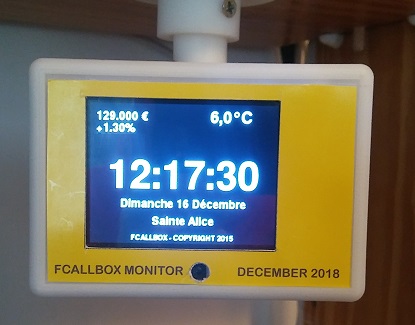

Ecran terminé
|
Impression capot
|
Download here the files in step format to print the cases
FRONT PLATE

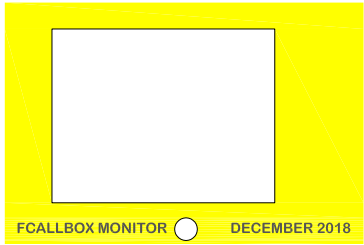

Below a proposal of front plate
Download here the front plate proposals

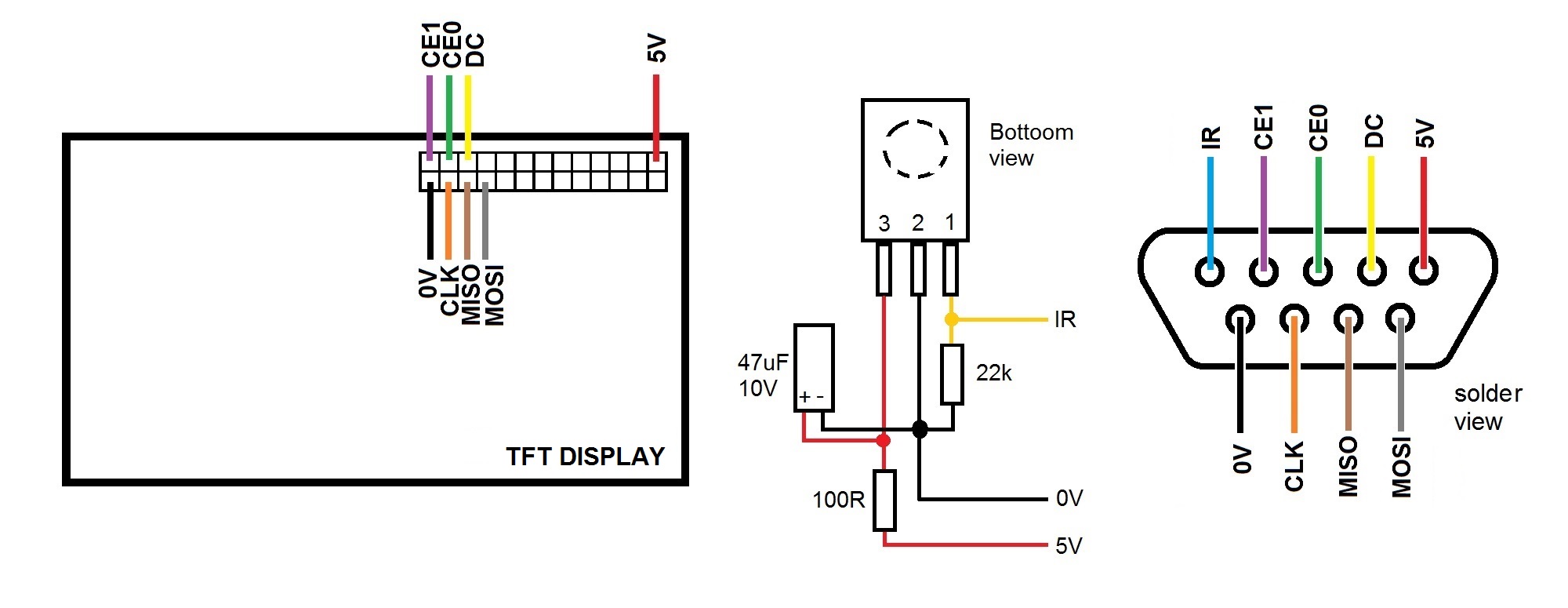

CABLING
|

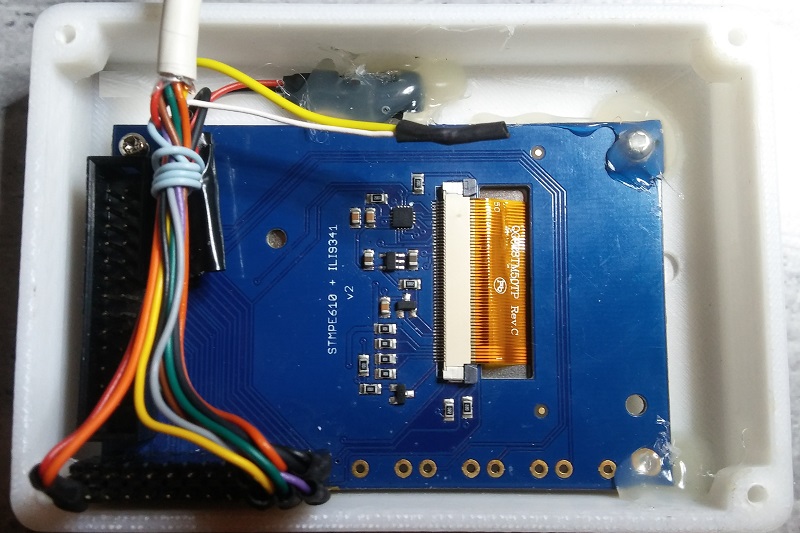

Pi TFT cabling detail
|

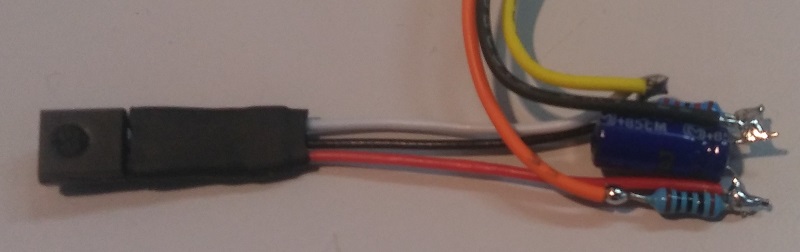

Infrared sensor cabling detail
|
