UNIVERSAL MEASUREMENT SYSTEM FCALLBOX

Description

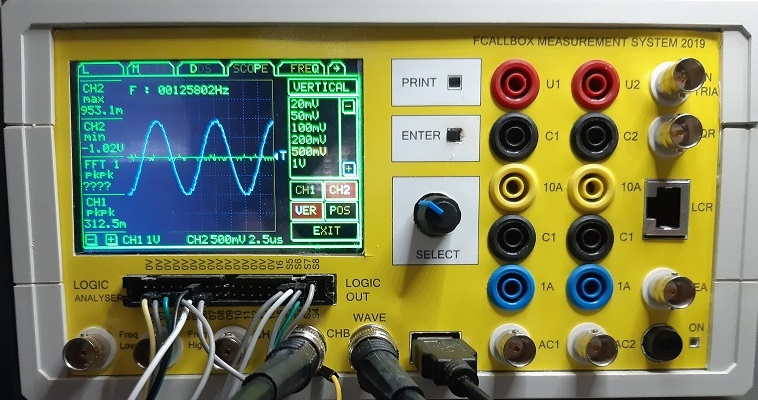

This page described the Universal Measurement System Fcallbox which included several measurement apparatus on one equipment :

The heart of the system is the backplane which can have several modules :

- 2 channels Hight precision multimeter voltage DC/AC and current DC described here

- Sine and triangle generator 50MHz described here

- Logic Analyzer multi-protocol 100MHz 16 channels described here

- Oscilloscope 2x50MHz described here

- Frequencymeter 200MHz et 1.1GHz described here

- Arbitrary function generator 100MHZ sampling described here

- LCR meter described here

Summary

• Bloc diagram

Copyright François Callanquin, September 2019
