  SYSTEM DE MESURE UNIVERSEL FCALLBOX

  RESULTATS TESTS MULTIMETRE

Sommaire

Entrée U1

  • Calibre 250mV

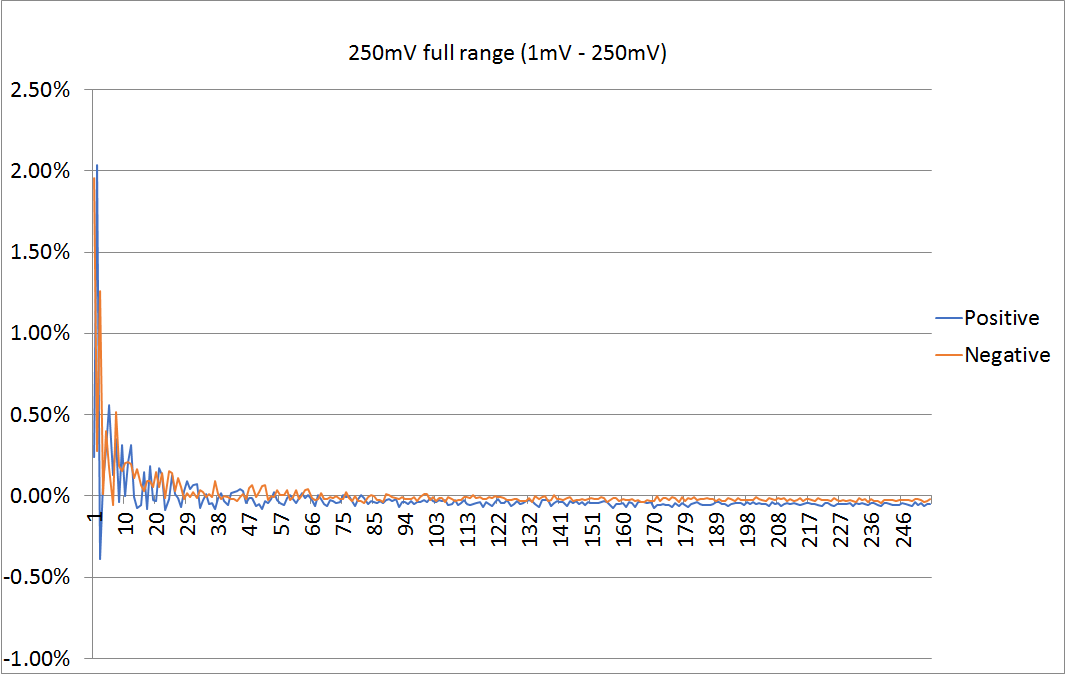

250mV full range (erreur max -0.4%/+2%)

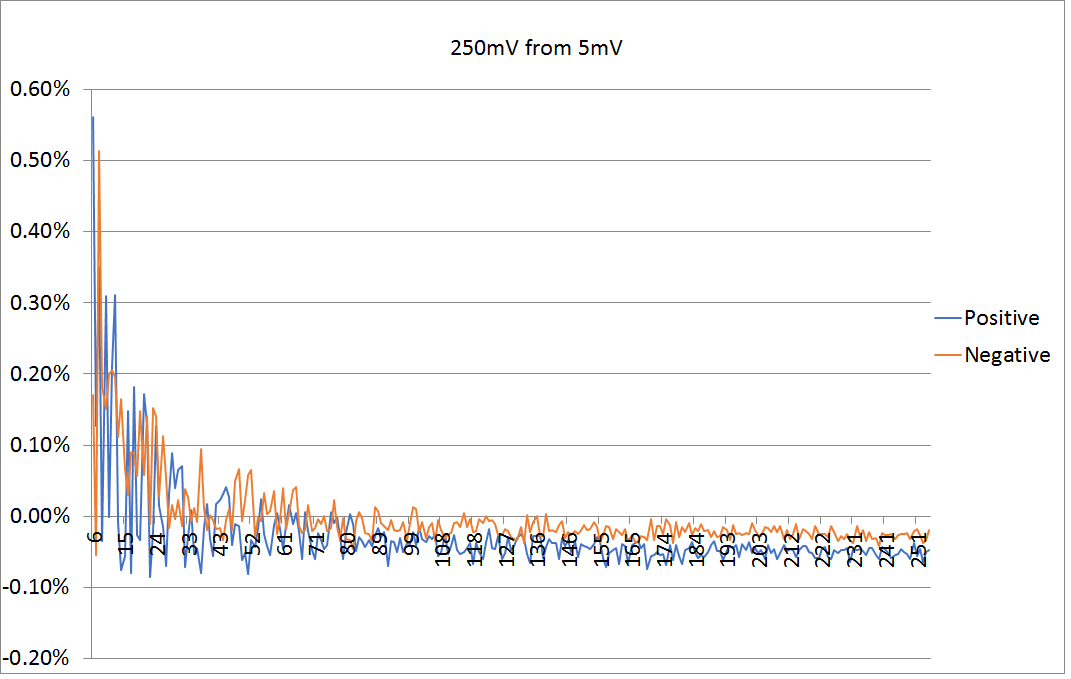

250mV from 5mV (erreur max -0.1%/+0.6%)

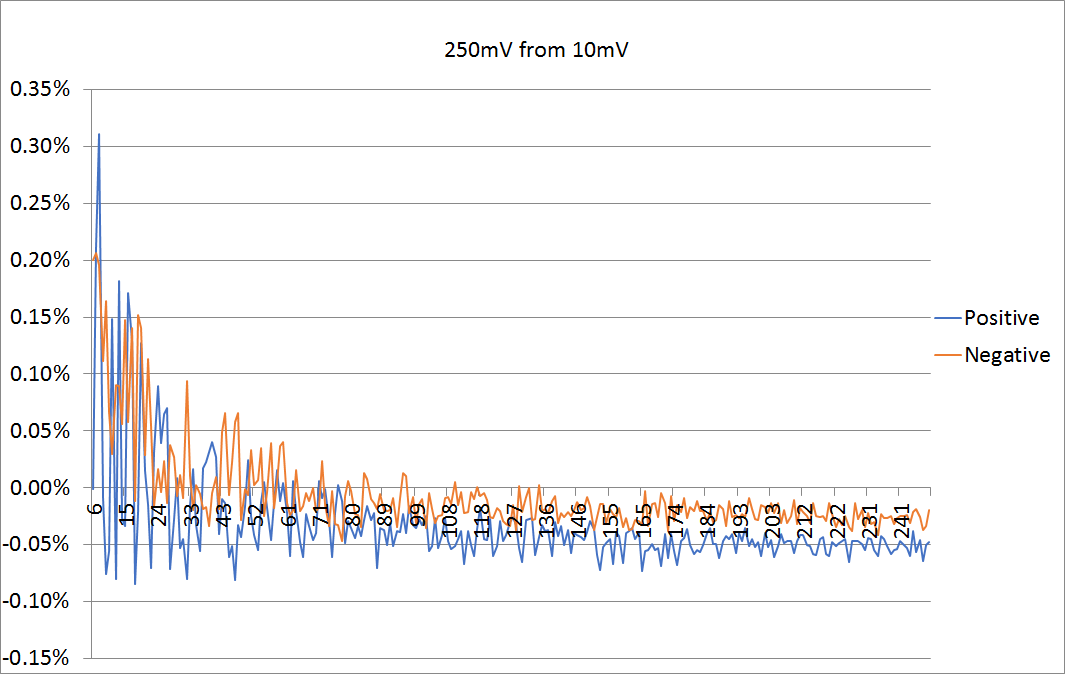

250mV from 10mV (erreur max -0.01%/+0.3%)

  • Calibre 500mV

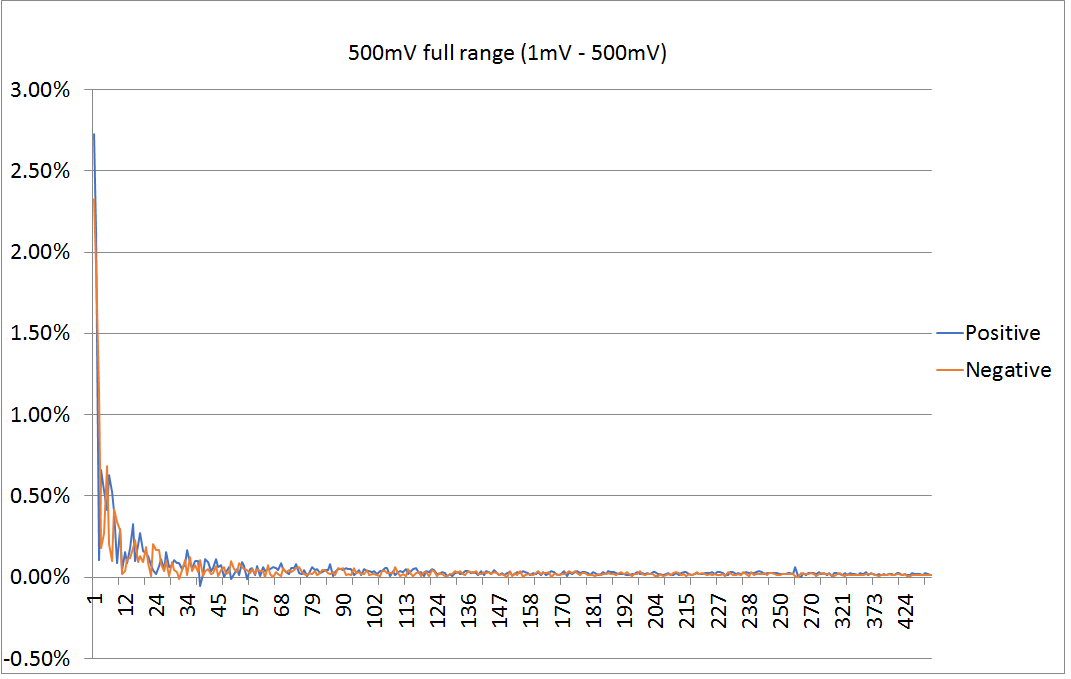

500mV full range (erreur max -0.2%/+2.5%)

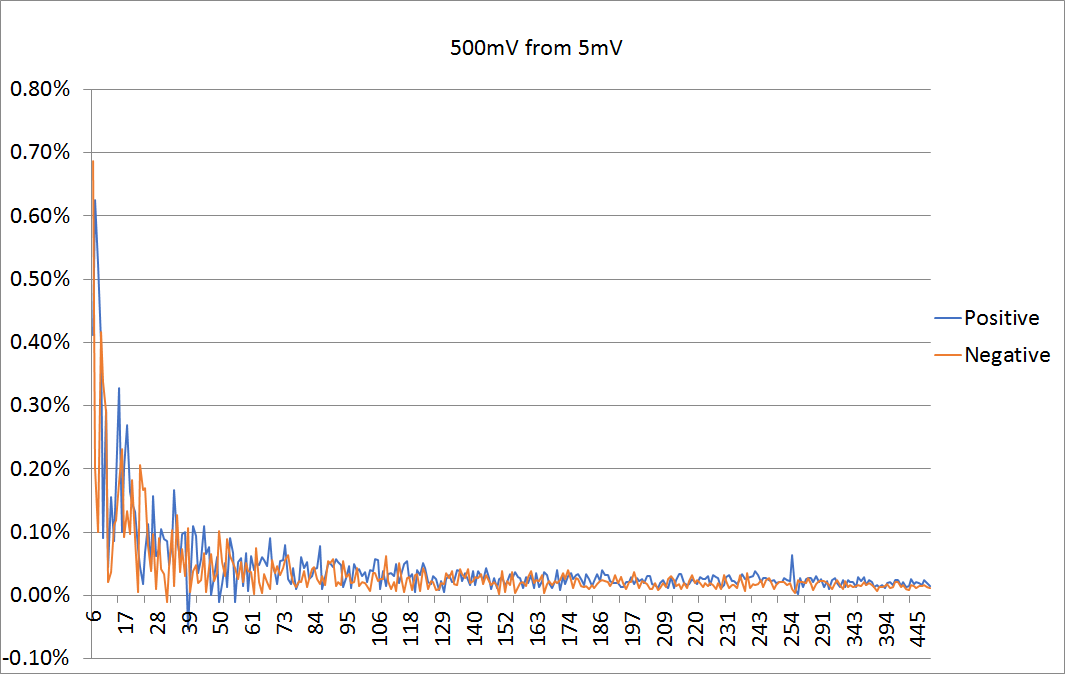

500mV from 5mV (erreur max -0.01%/+0.7%)

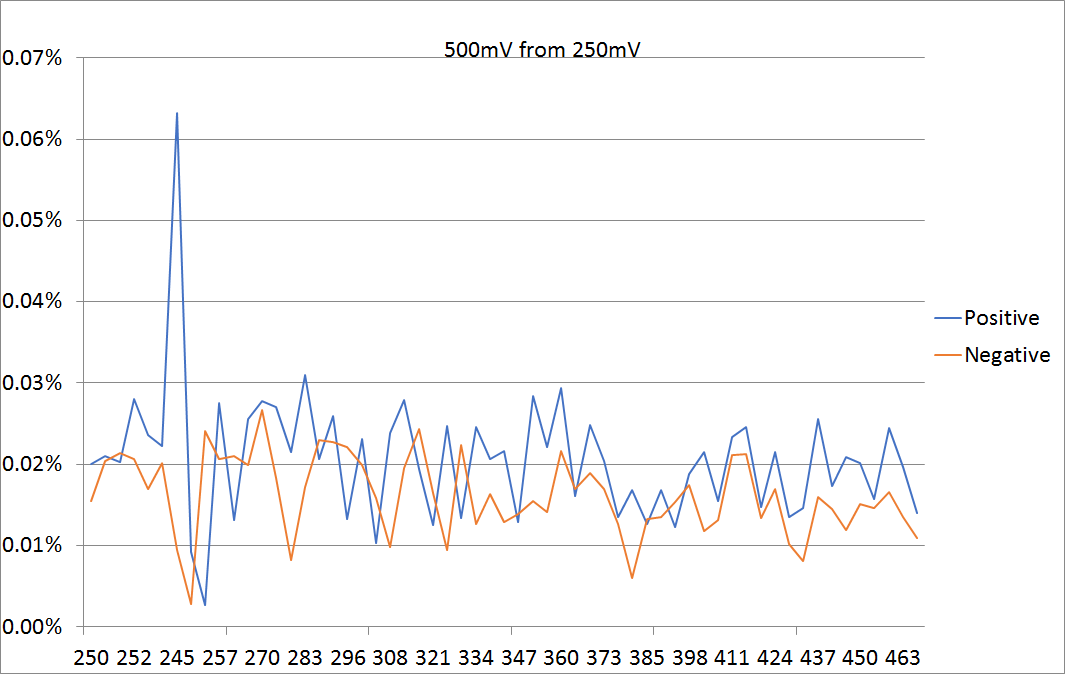

500mV from 250mV (erreur max 0.01%/+0.06%)

  • Calibre 1V

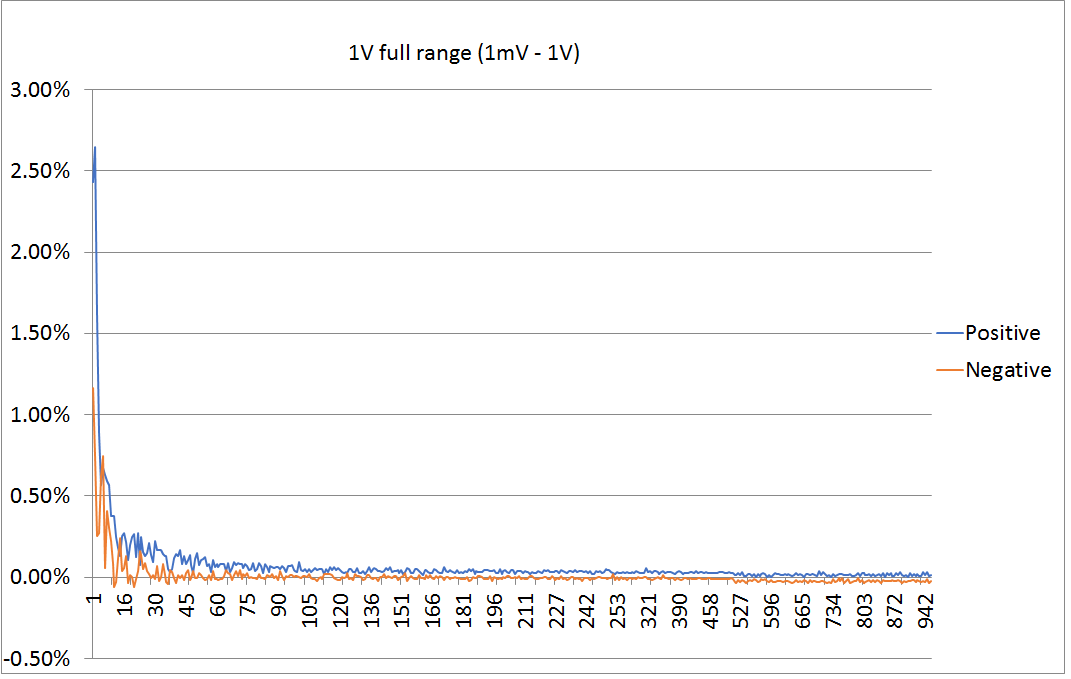

1V full range (erreur max 0%/+2.5%)

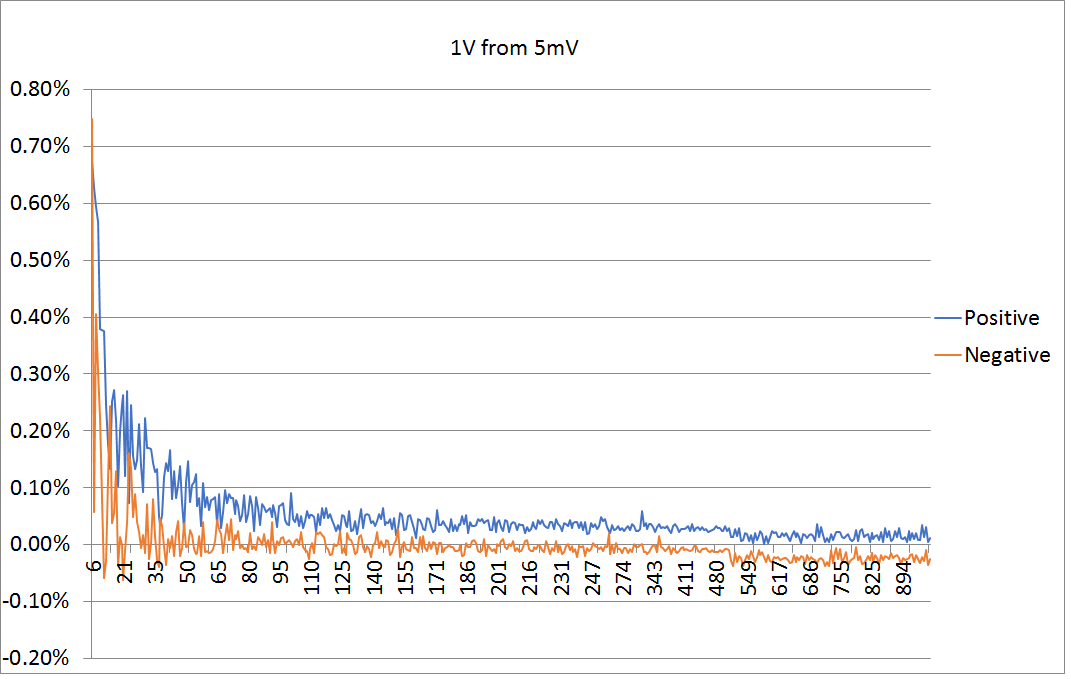

1V from 5mV (erreur max -0.1%/+0.7%)

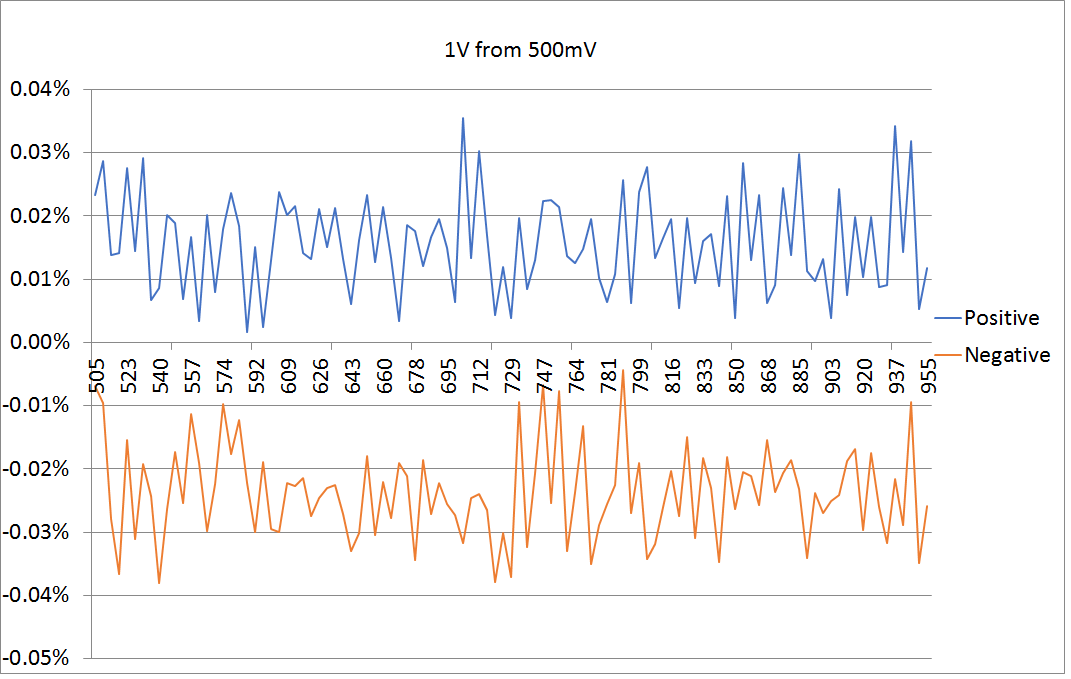

1V from 500mV (erreur max -0.04%/+0.04%)

  • Calibre 2V

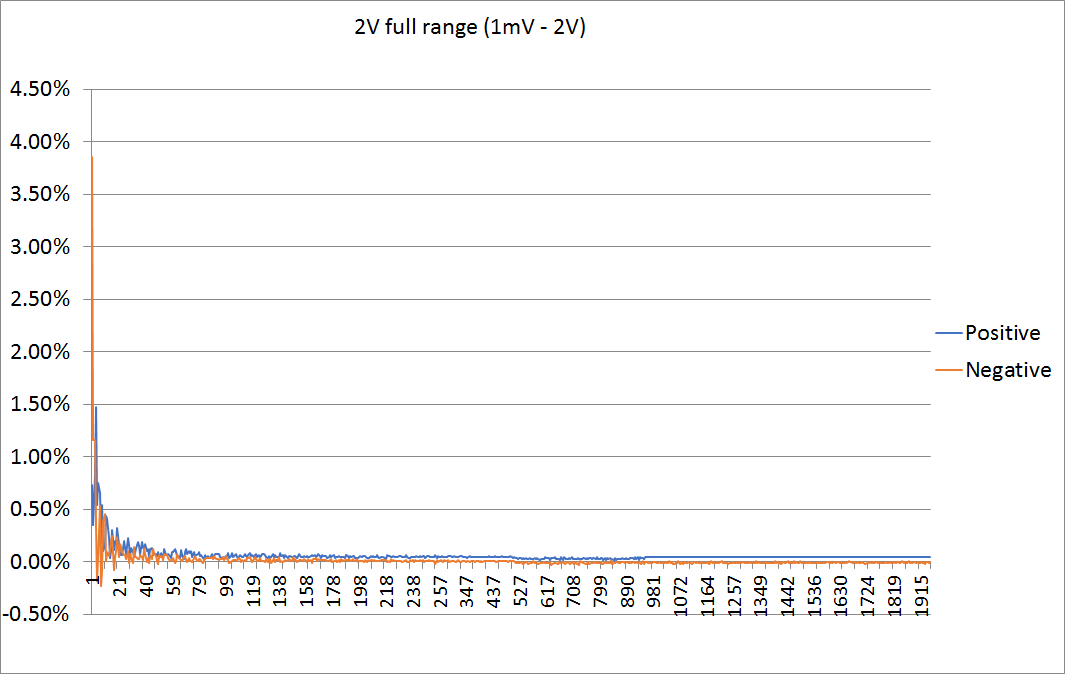

2V full range (erreur max -0.1%/+4%)

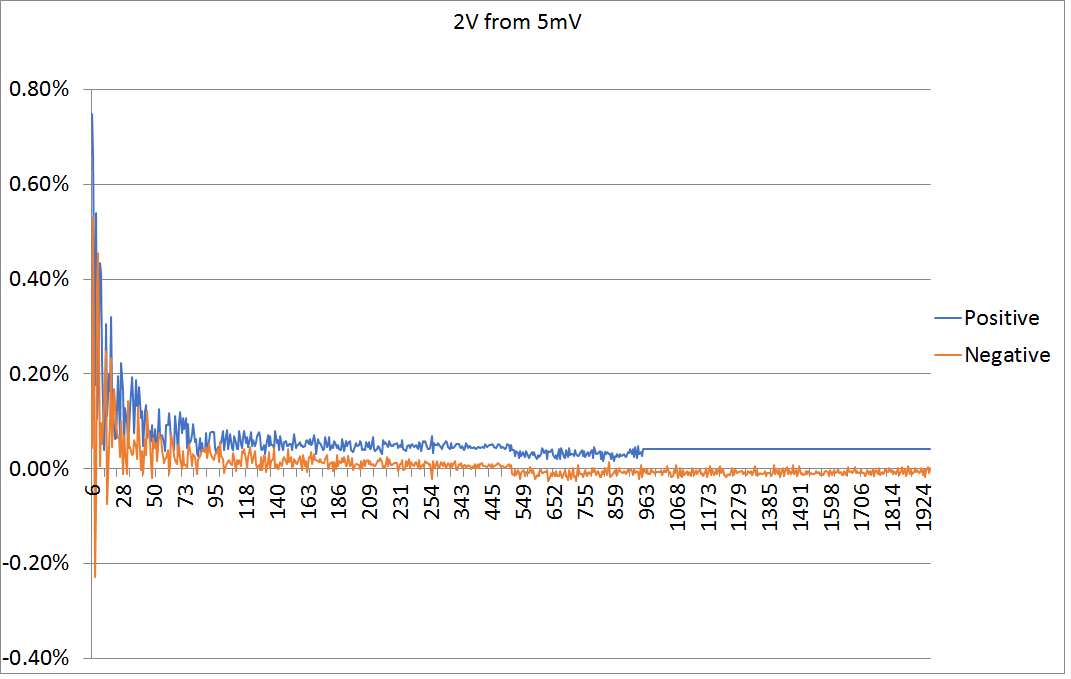

2V from 5mV (erreur max -0.2%/+0.5%)

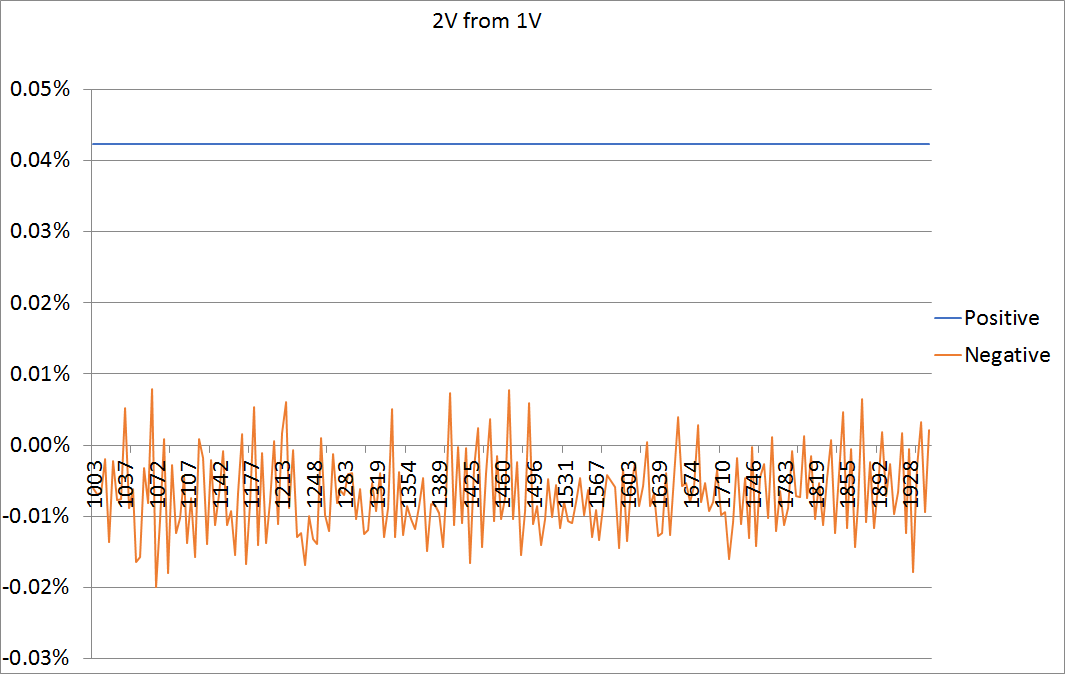

2V from 1V (erreur max -0.02%/+0.01%)

  • Calibre 10V

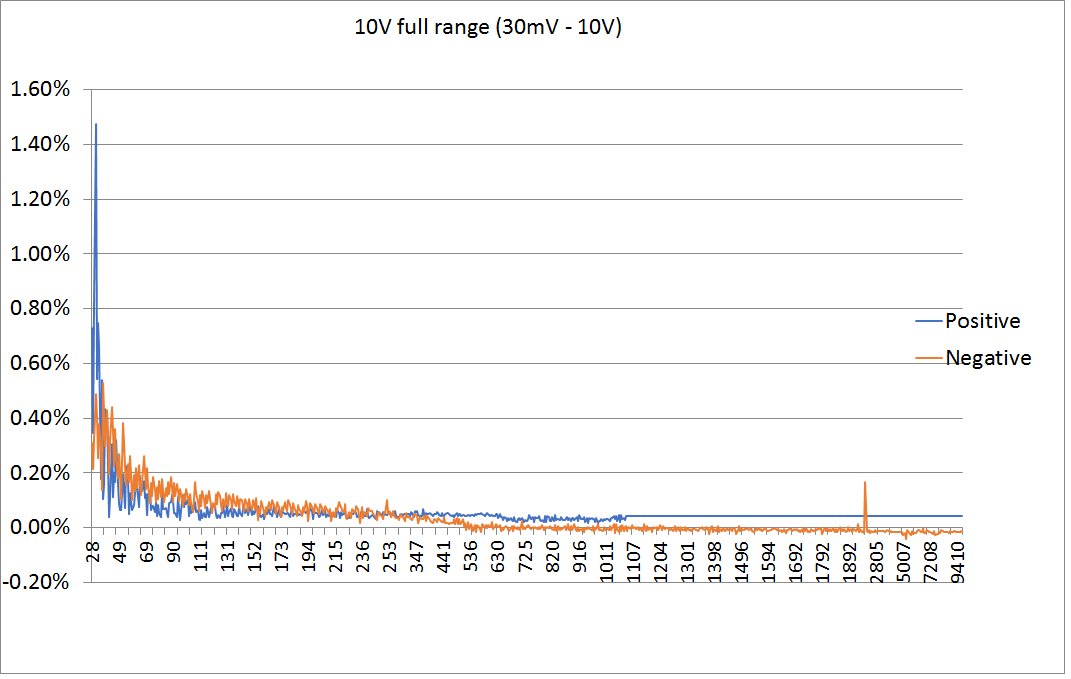

10V full from 30mV (erreur max -0.1%/+1.4%)

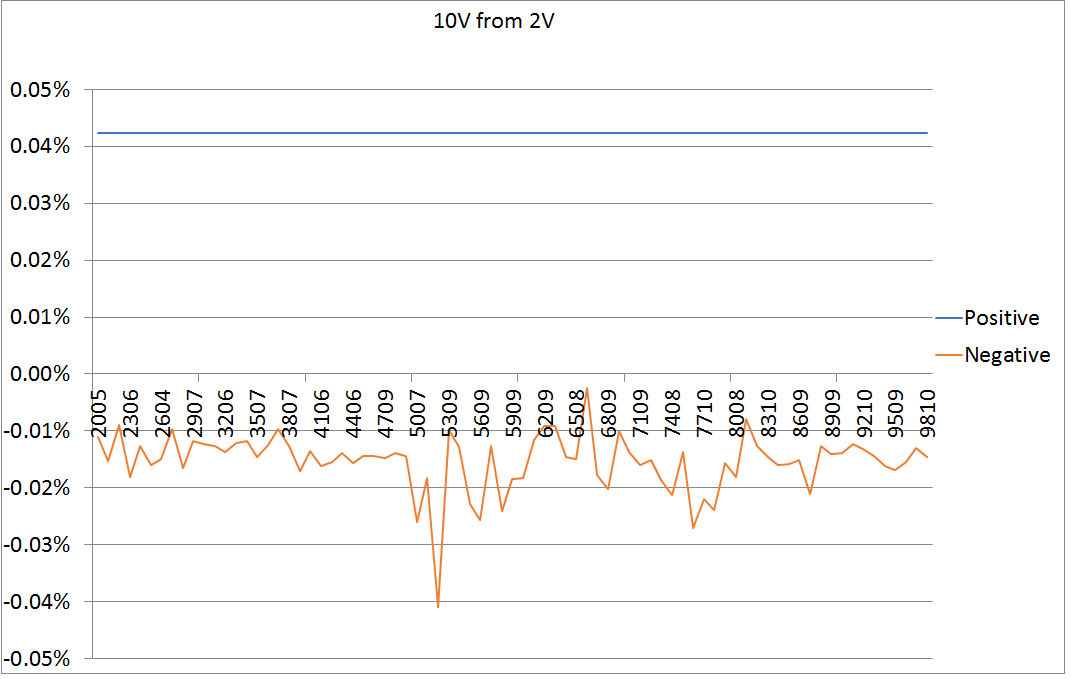

10V from 2V (erreur max -0.02%/+0.04%)

  • Calibre 25V

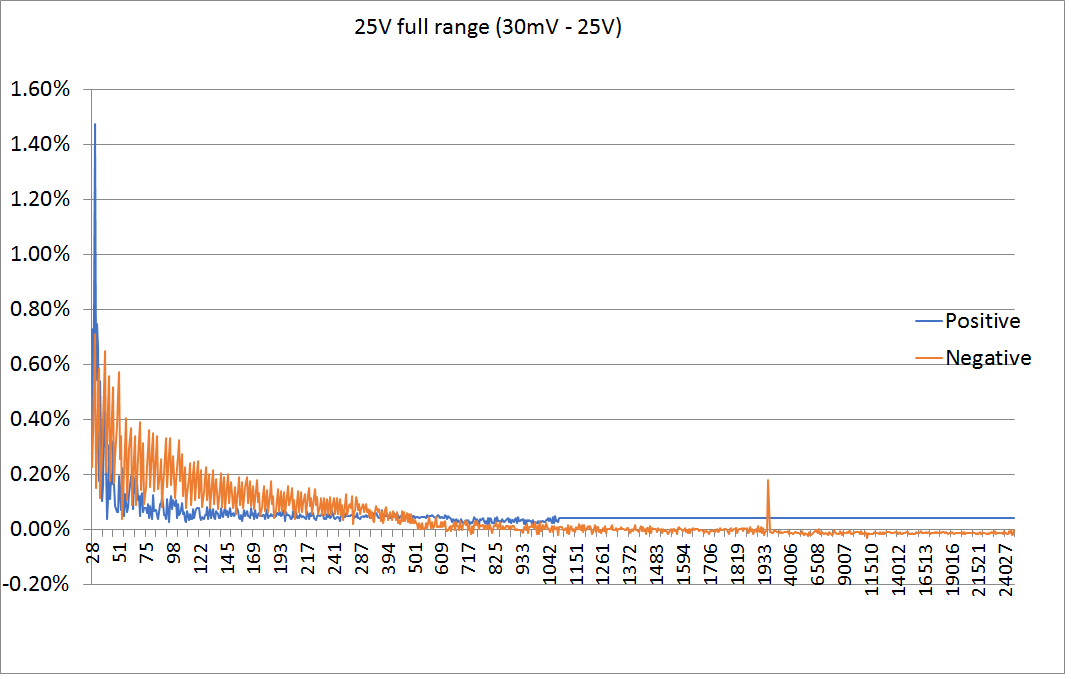

25V full from 30mV (erreur max -0.01%/+1.4%)

25V from 1V (erreur max -0.03%/+0.04%)

  • Calibre 50V

50V full from 30mV(erreur max -0.01%/+1.4%)

50V from 25V (erreur max -0.02%/+0.04%)

  • Calibre 500V (testé à 60V max)

500V full from 30mV(erreur max -0.01%/+11%)

500V from 10V (erreur max -0.02%/+0.06%)

  • Auto mode (testé jusqu'à 60V)

Auto mode full from 1mV(erreur max -1%/+1%)

Auto mode from 20mV (erreur max -0.3%/+0.15%)


  • Résumé

Calibre full range Range 1 Range 2
250mV -0.4%/+2% -0.1%/+0.6% from 5mV -0.01%/+0.3% from 10mV
500mV -0.2%/+2.5% -0.01%/+0.7% from 5mV 0.01%/+0.06% from 250mV
1V 0%/+2.5% -0.1%/+0.7% from 5mV -0.04%/+0.04% from 500mV
2V -0.1%/+4% -0.2%/+0.5% from 5mV 0.02%/+0.01% from 1V
10V -0.1%/+1.5% from 30mV -0.04%/+0.04% from 2V
25V -0.01%/+1.4% from 30mV -0.03%/+0.04% from 1V
50V (testé à 60V max) from 30mV from 25V
500V (testé à 60V max) from 30mV from 10V
Auto (testé jusqu'à 60V) from 1mV from 20mV

Entrée I1

  • Calibre 125mA

125mA full range (erreur max 700%/+0.3%)

125mA from 100uA (erreur max 0.3/75%)

125mA from 1mA (erreur max 0.3%/8%)

  • Calibre 250mA

250mA full range (erreur max 850%/+0.3%)

250mA from 100uA (erreur max 0.3/66%)

250mA from 1mA (erreur max 0.32%/0.36%)




  • Résumé

Calibre full range Range 1        Range 2
125mA 700%/+0.3% 0.3/75% from 100uA 0.3%/8% from 1mA
250mA 850%/+0.3% 0.3/66% from 100uA 0.32%/0.36% from 125mA

Entrée U2 (V3)

  • Calibre 250mV

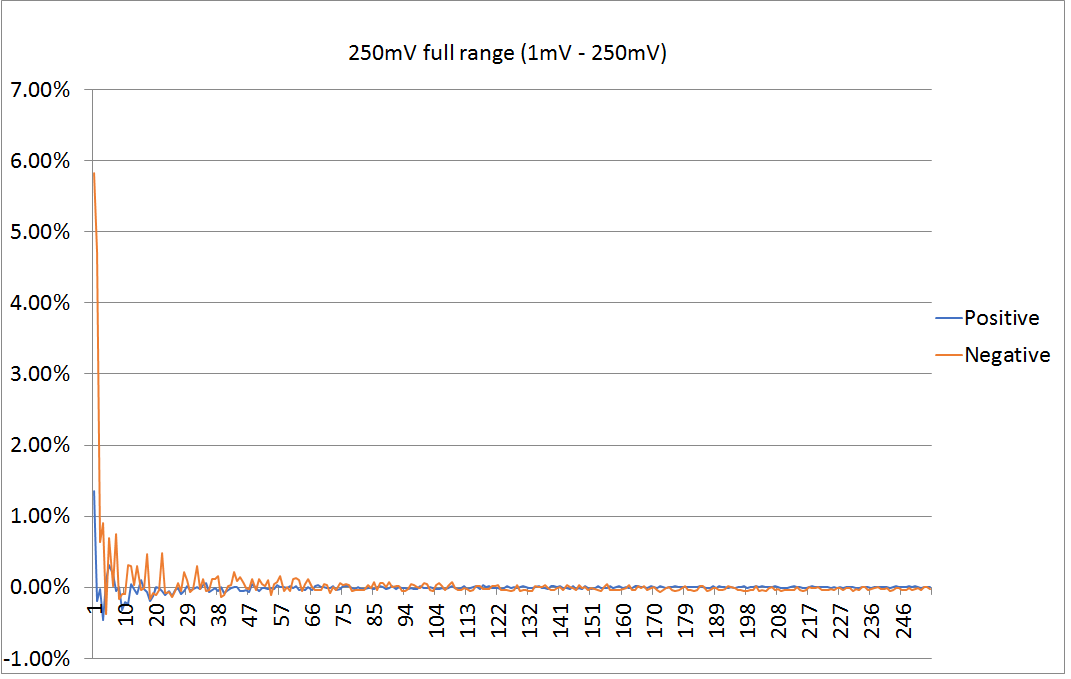

250mV full range (erreur max -0.5%/+6%)

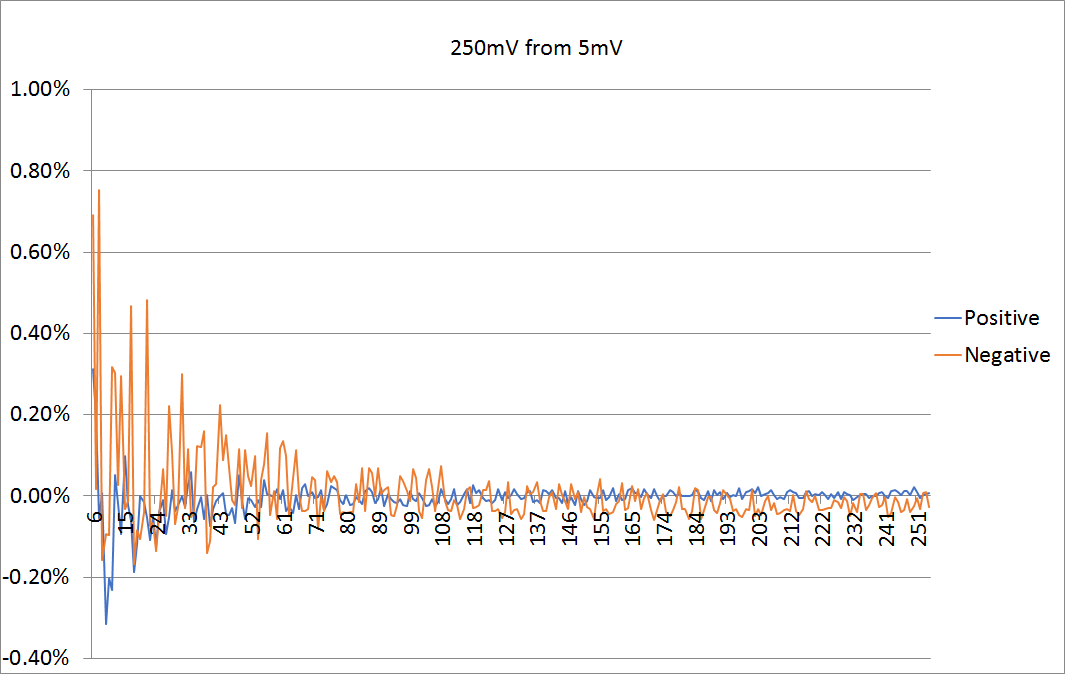

250mV from 5mV (erreur max -0.2%/+0.8%)

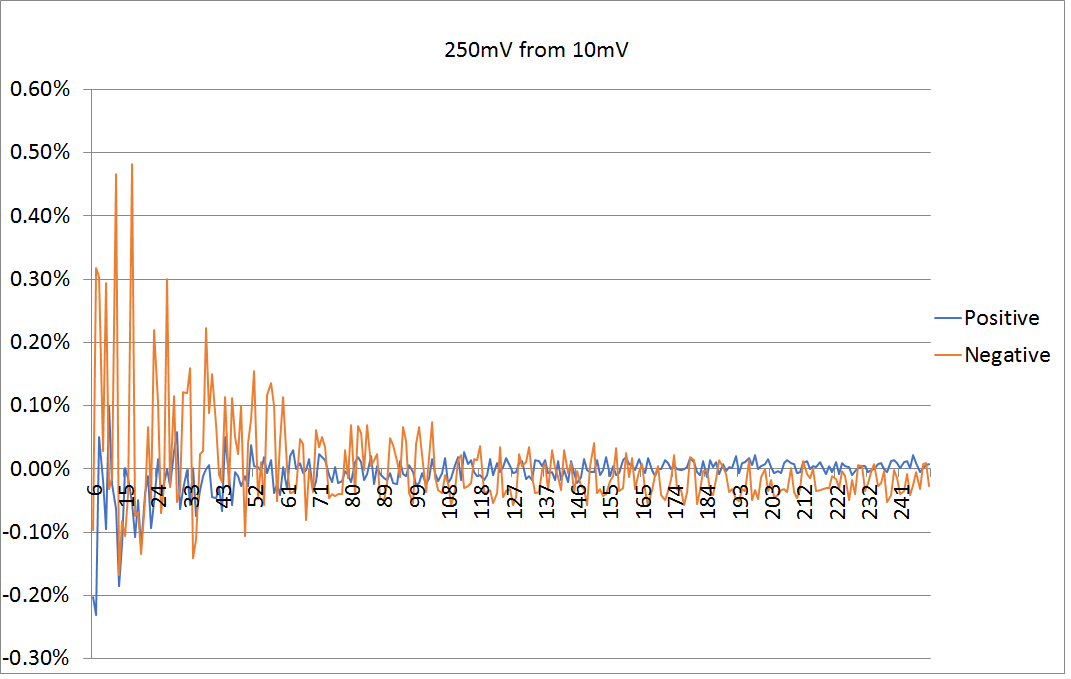

250mV from 10mV (erreur max -0.15%/+0.5%)

  • Calibre 500mV

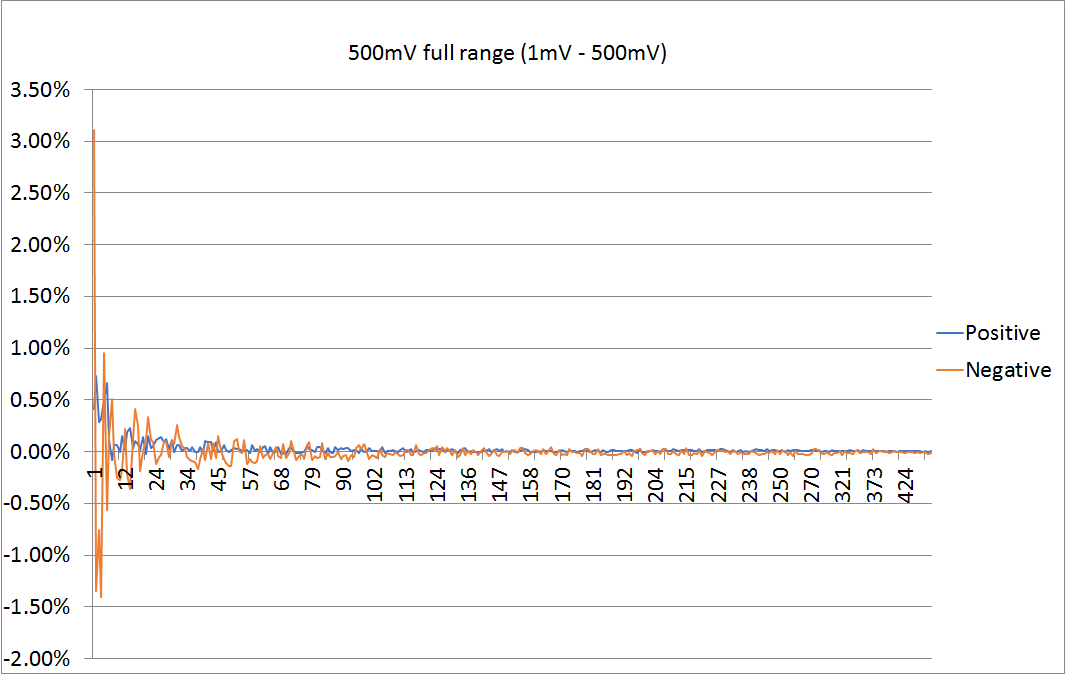

500mV full range (erreur max -1.5%/+3%)

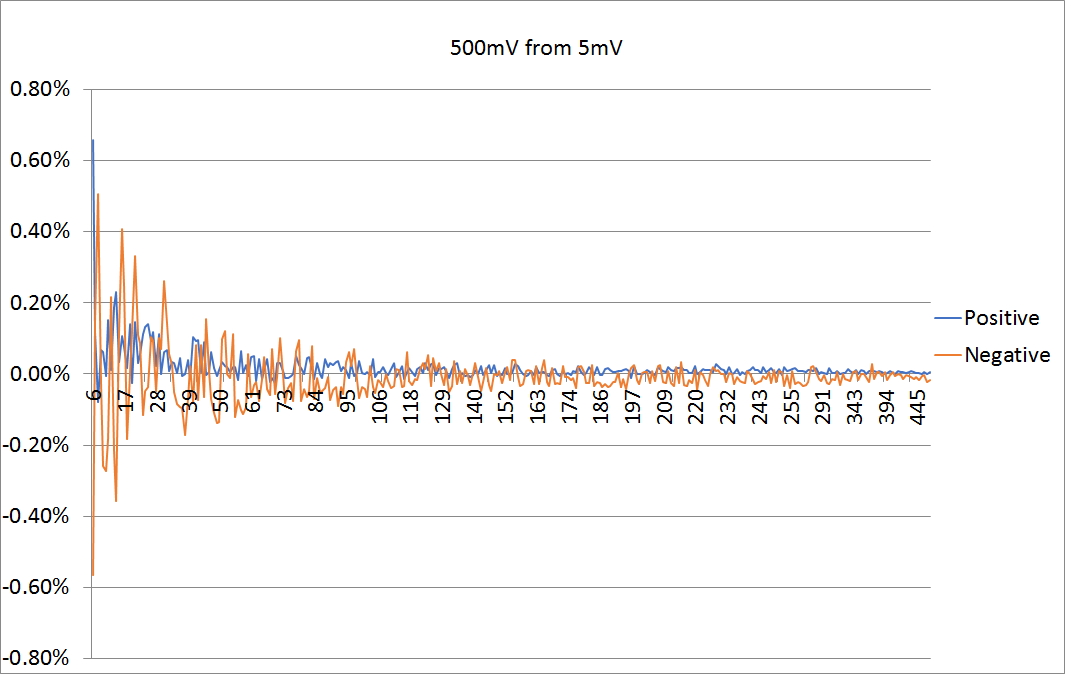

500mV from 5mV (erreur max -0.3%/+0.5%)

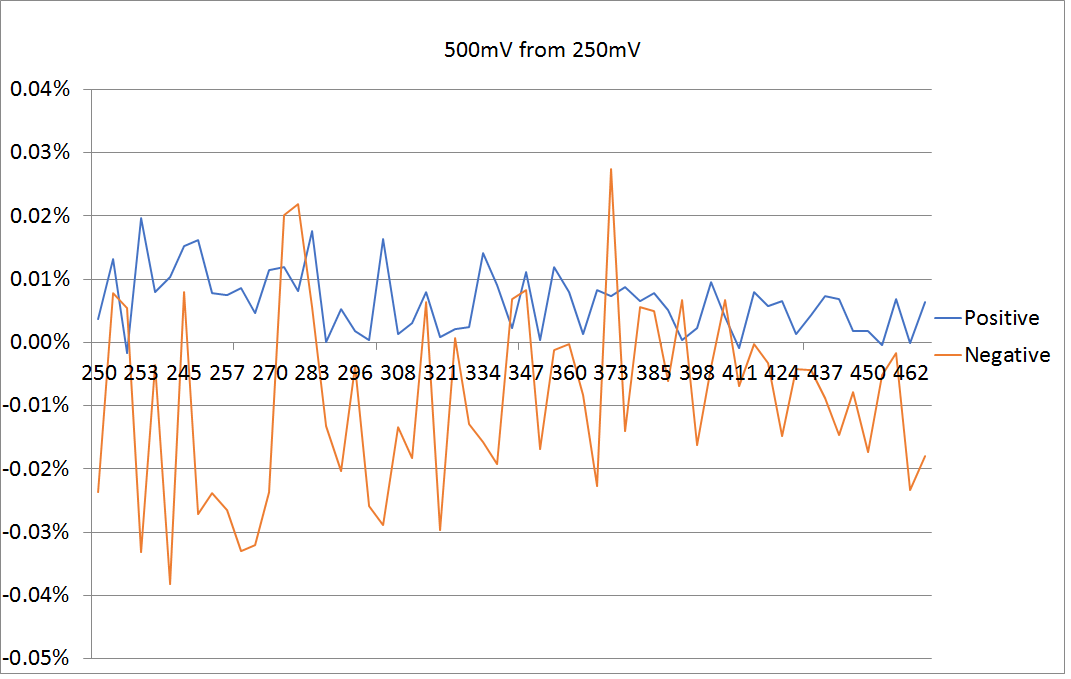

500mV from 250mV (erreur max -0.04%/+0.05%)

  • Calibre 1V

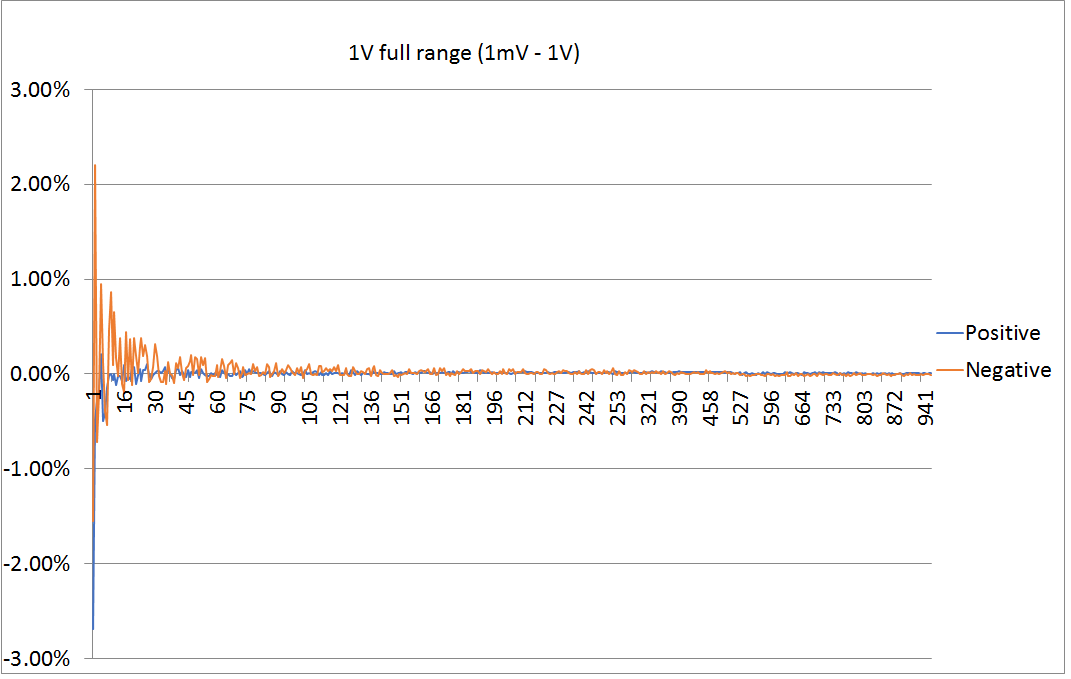

1V full range (erreur max -2.5%/+2%)

1V from 5mV (erreur max -0.5%/+0.9%)

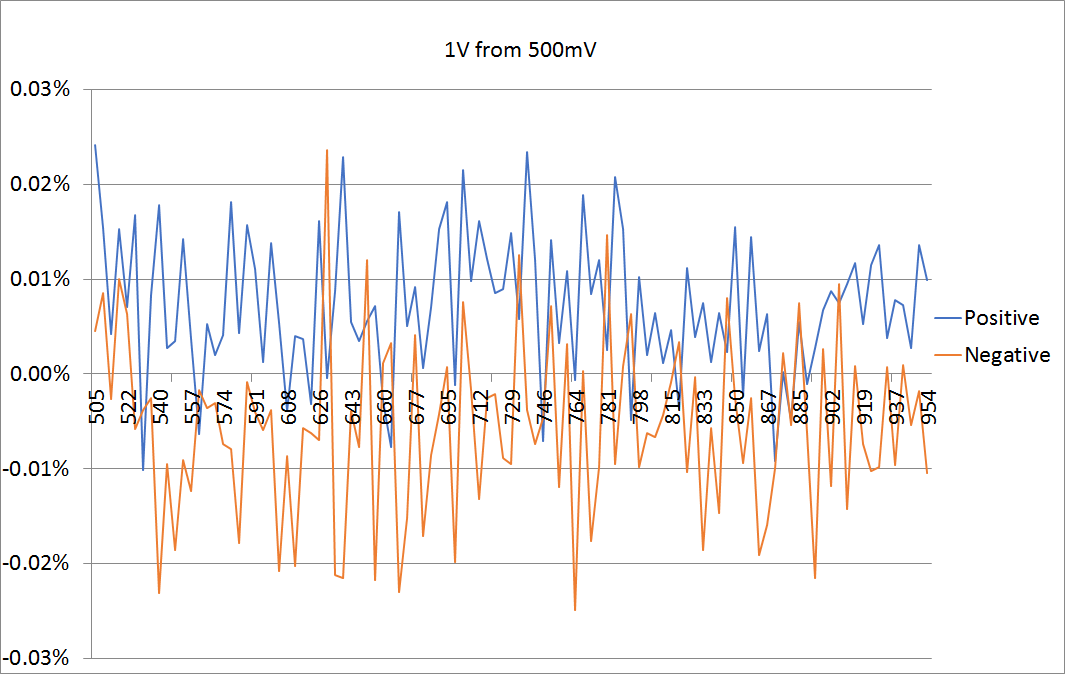

1V from 500mV (erreur max -0.02%/+0.02%)

  • Calibre 2V

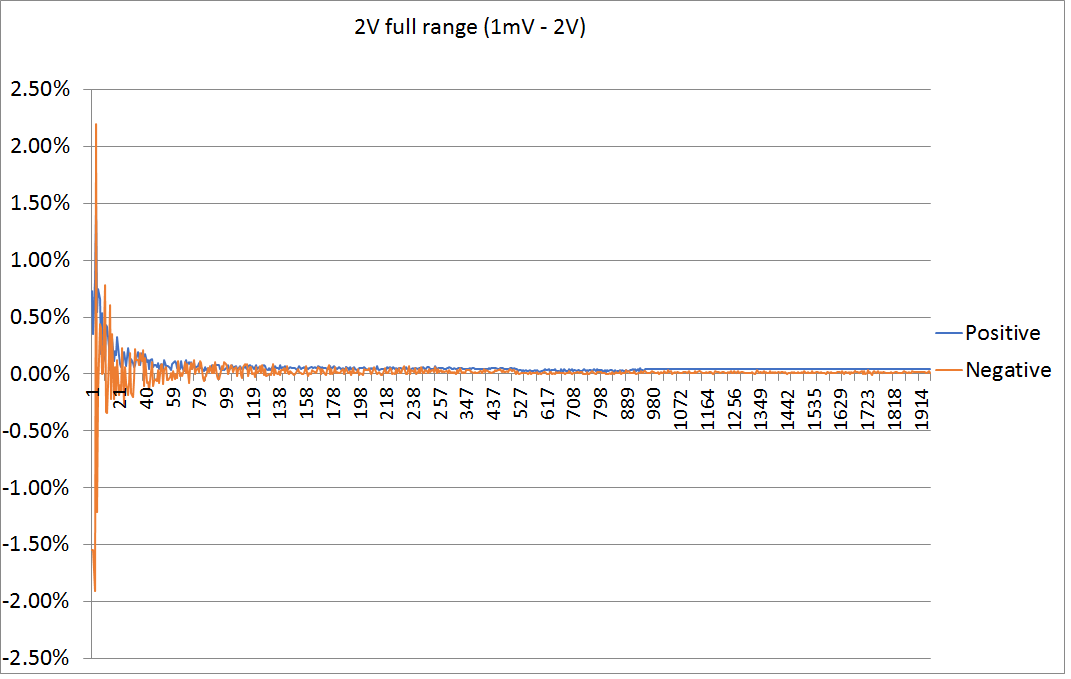

2V full range (erreur max -2%/+2%)

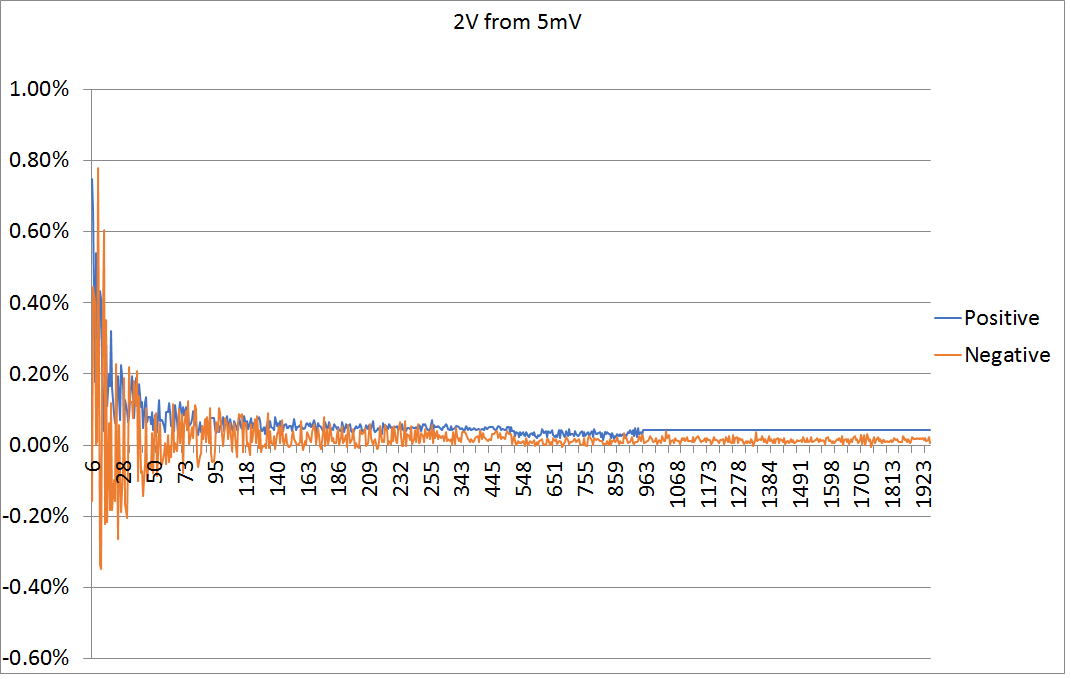

2V from 5mV (erreur max -0.3%/+0.8%)

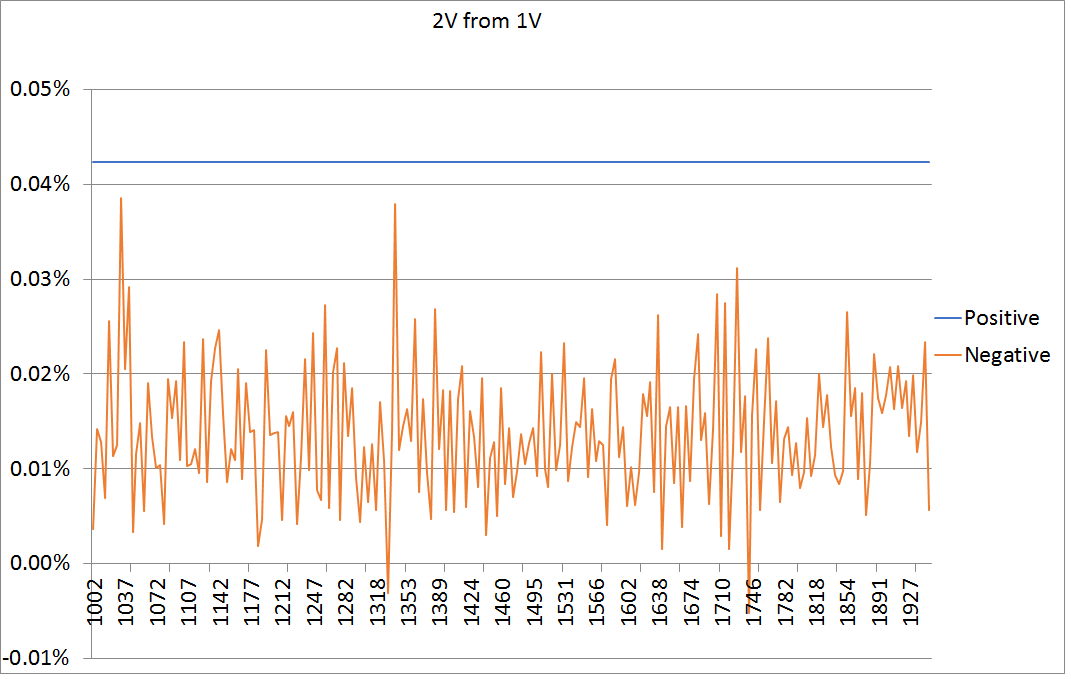

2V from 1V (erreur max -0.01%/+0.04%)

  • Calibre 10V

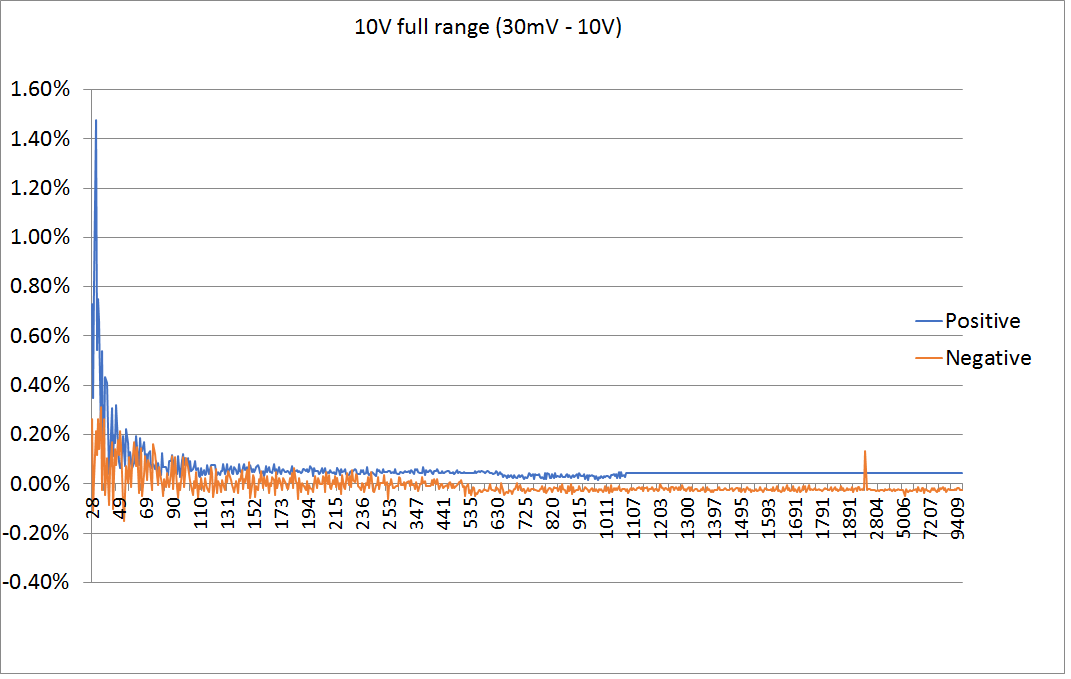

10V full from 30mV (erreur max -0.1%/+1.5%)

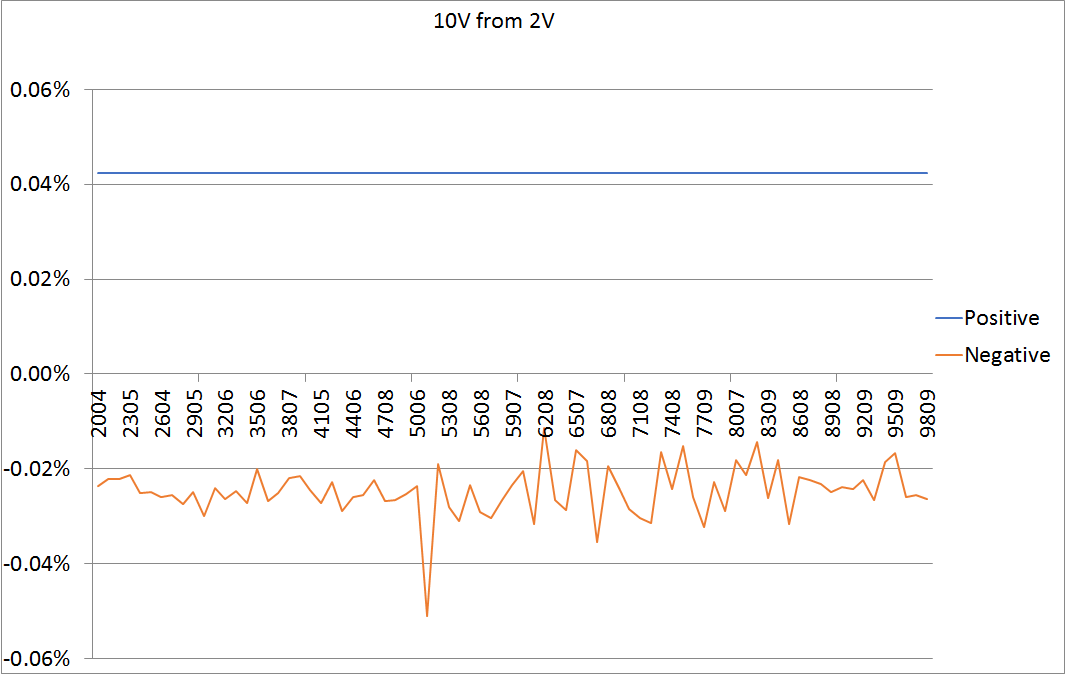

10V from 2V (erreur max -0.02%/+0.04%)

  • Calibre 25V

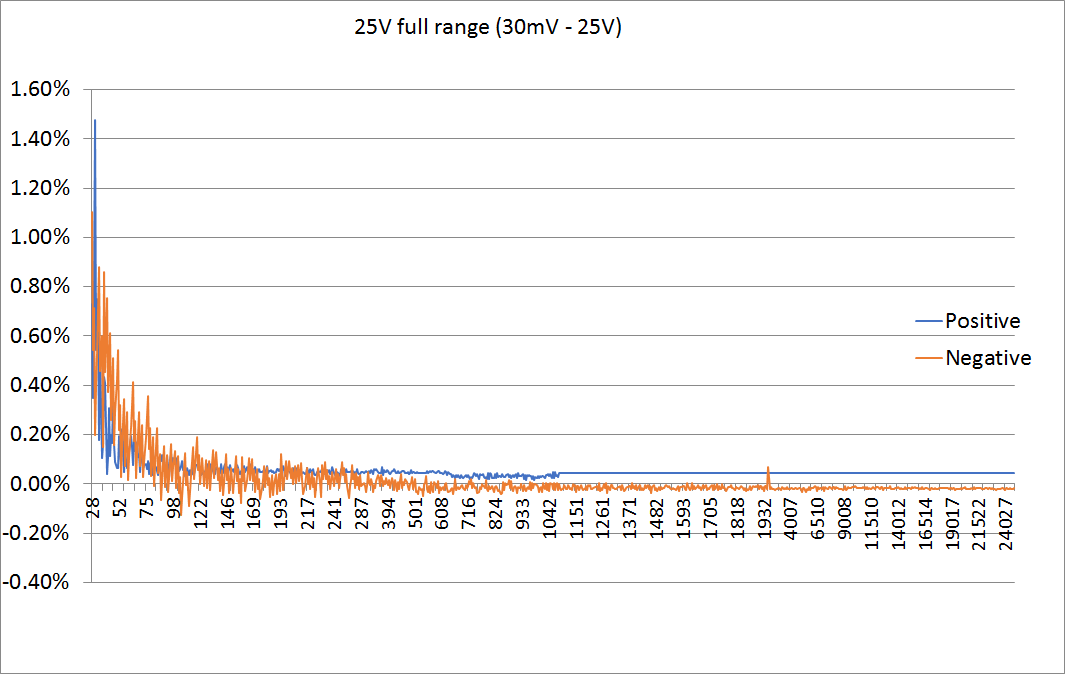

25V full from 30mV (erreur max -0.1%/+1.5%)

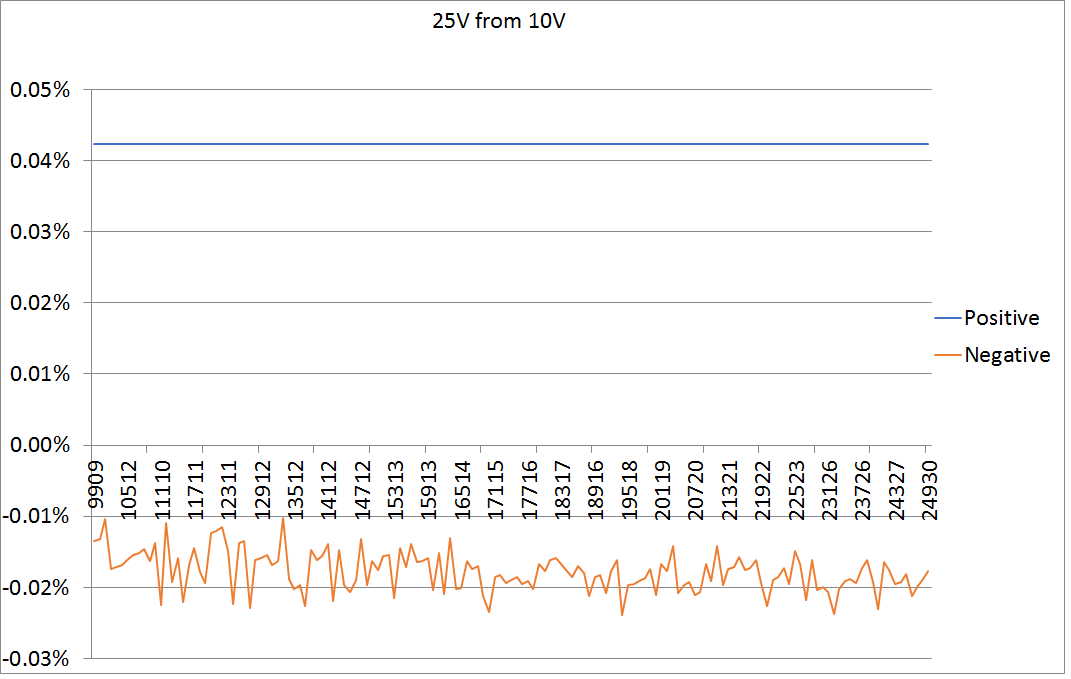

25V from 1V (erreur max -0.02%/+0.04%)

  • Calibre 50V

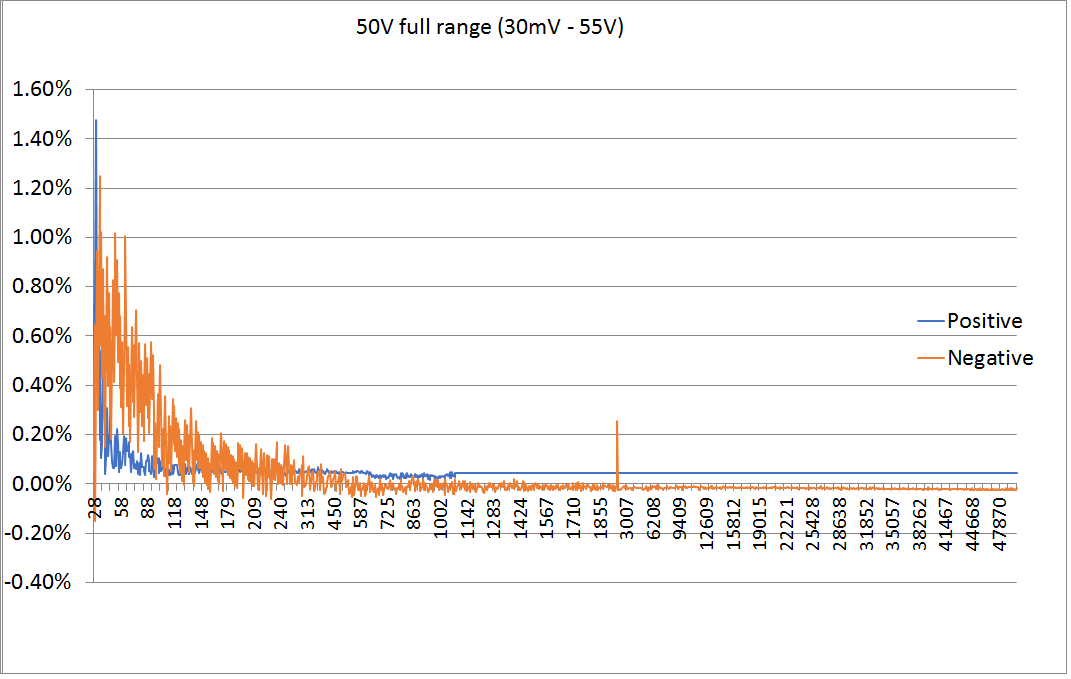

50V full from 30mV(erreur max 0.01%/+1.2%)

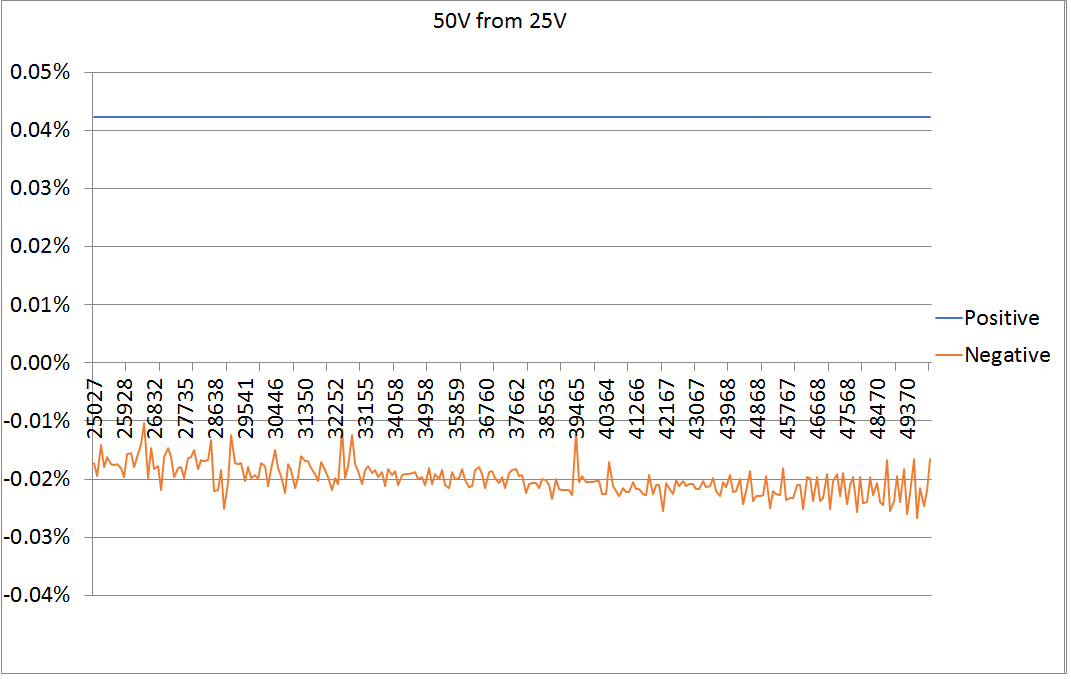

50V from 25V (erreur max -0.02%/+0.04%)

  • Calibre 500V (testé à 60V max)

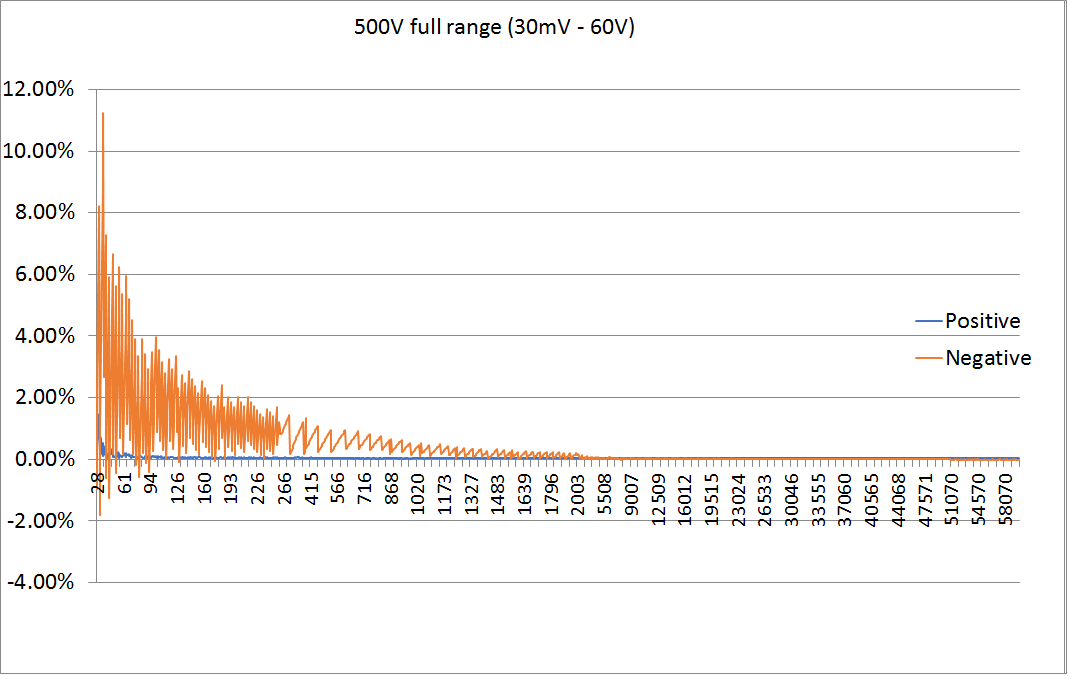

500V full from 30mV(erreur max -0.01%/+11%)

500V from 10V (erreur max -0.02%/+0.06%)

  • Auto mode (testé jusqu'à 60V)

Auto mode full from 1mV(erreur max -1%/+1%)

Auto mode from 20mV (erreur max -0.3%/+0.15%)


  • Résumé

Calibre full range Range 1 Range 2
250mV -0.5%/+6% -0.2%/+0.8% from 5mV -0.15%/+0.5% from 10mV
500mV -1.5%/+3% -0.3%/+0.5% from 5mV -0.04%/+0.05% from 250mV
1V -2.5%/+2% -0.5%/+0.9% from 5mV -0.02%/+0.02% from 500mV
2V -2%/+2% -0.3%/+0.8% from 5mV -0.01%/+0.04% from 1V
10V -0.1%/+1.5% from 30mV -0.02%/+0.04% from 2V
25V -0.1%/+1.5% from 30mV -0.02%/+0.04% from 1V
50V (testé à 60V max) -0.01%/+1.2% from 30mV -0.02%/+0.04% from 25V
500V (testé à 60V max) -0.01%/+11% from 30mV -0.02%/+0.06% from 10V
Auto (testé jusqu'à 60V) from 1mV from 20mV

Entrée I1

  • Calibre 125mA

125mA full range (erreur max 700%/+0.3%)

125mA from 100uA (erreur max 0.3/75%)

125mA from 1mA (erreur max 0.3%/8%)

  • Calibre 250mA

250mA full range (erreur max 850%/+0.3%)

250mA from 100uA (erreur max 0.3/66%)

250mA from 1mA (erreur max 0.32%/0.36%)




  • Résumé

Calibre full range Range 1        Range 2
125mA 700%/+0.3% 0.3/75% from 100uA 0.3%/8% from 1mA
250mA 850%/+0.3% 0.3/66% from 100uA 0.32%/0.36% from 125mA
